Briggs and Stratton 543477-3322-H7

Model: 543477-3322-H7

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

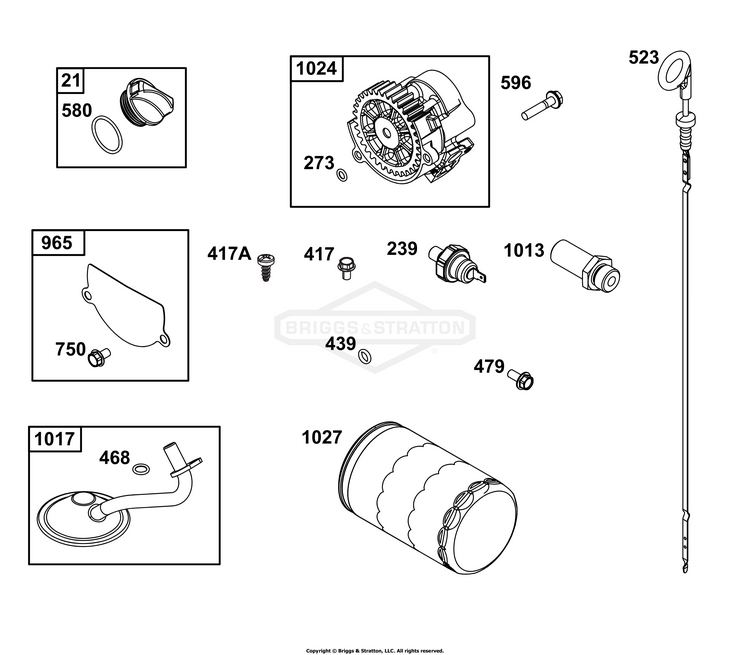

Lubrication Group

...
...
21
CAP, Oil Fill BS-843464
...
239
SWITCH, Oil Pressure BS-841281
...
273
SEAL, O-Ring (Oil Pump) BS-690681
...
417
SCREW BS-841233
...
417A
SCREW BS-84006665
...
439
O-RING, Oil Gallery (Crankcase Cover/Sump or Cylinder Assembly) BS-692154
...
468
SEAL, O-Ring (Oil Pump Screen) BS-690690
...
479
SCREW (Oil Pump Screen) BS-807084
...
523
DIPSTICK BS-841007
...
596
SCREW (Oil Pump) BS-691492
...
750
SCREW (Oil Pump Cover) BS-841233
...
965
COVER, Oil Pump BS-809422
...
1013
NIPPLE, Oil Filter BS-809505
...
1017
SCREEN, Oil Pump BS-809421
...
1024
PUMP, Oil BS-845983
...
1027
FILTER, Oil BS-842921
