Briggs and Stratton 541477-2240-H7

Model: 541477-2240-H7

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

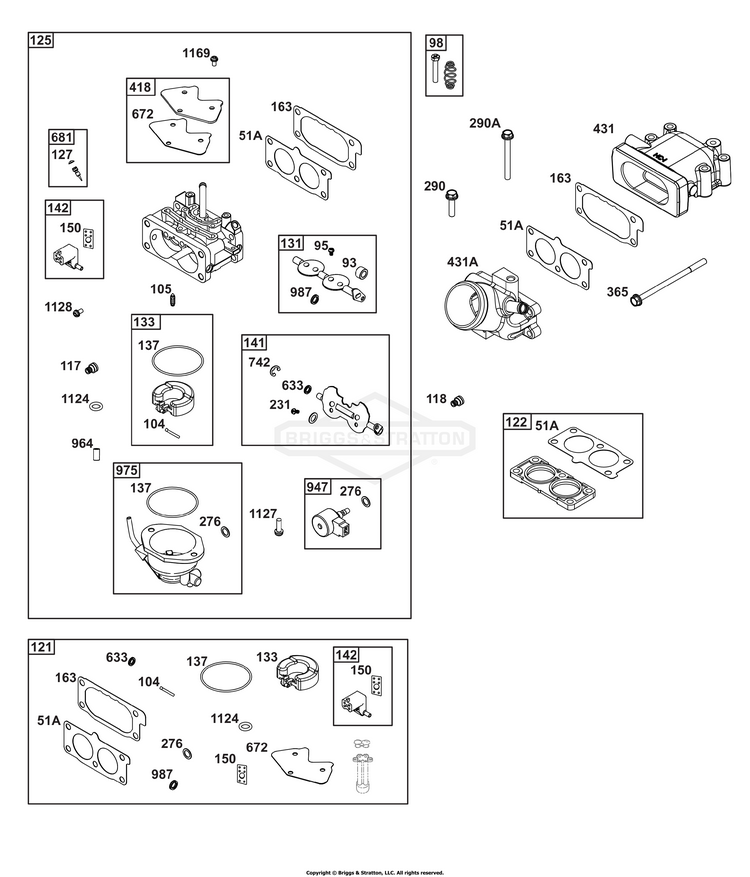

Carburetor Group

...
...
93
BUSHING, Throttle Shaft BS-845864
...
95
SCREW (Throttle Valve) BS-690718
...
98
KIT, Idle Speed BS-841842
...
104
PIN, Float Hinge BS-690882
...
105
VALVE, Float Needle BS-698537
...
1124
SEAL, O-Ring (Fuel Transfer Tube) BS-841653
...
1127
SCREW (Float Bowl To Carburetor Body) BS-841621
...
1128
SCREW (Carburetor Nozzle) BS-690990
...
1169
SCREW (Carburetor Cover Plate) BS-690990
...
117
JET, Main (Standard) (Left Jet) BS-842012
...
117
JET, Main (Standard) (Right Jet) BS-842634
...
118
JET, Main (High Altitude) (Left Jet) BS-842139
...
118
JET, Main (High Altitude) (Right Jet) BS-842630
...
121
KIT, Carburetor Overhaul (Service Kits can include parts not for this engine.) BS-842697
...
122
SPACER, Carburetor BS-846245
...
125
CARBURETOR BS-845279
...
127
PLUG, Welch BS-844590
...
131
KIT, Throttle Shaft BS-843652
...
131
KIT, Throttle Shaft BS-843652
...
133
FLOAT, Carburetor BS-841545
...
137
GASKET, Float Bowl BS-841651
...
141
KIT, Choke Shaft BS-844733
...
141
KIT, Choke Shaft BS-844733
...
142
NOZZLE, Carburetor BS-841648
...
150
GASKET, Nozzle BS-841649
...
231
SCREW (Choke Valve) BS-690718
...
276
WASHER, Sealing BS-695410
...
365
SCREW (Carburetor/Throttle Body) BS-841853
...
418
PLATE, Carburetor Cover BS-843346
...
633
SEAL, Choke/Throttle Shaft BS-690722
...
672
GASKET, Carburetor Plate BS-841655
...
681
KIT, Needle Valve BS-845290
...
742
RETAINER, E Ring BS-807001
...
947
SOLENOID, Fuel BS-841546
...
964
CAP, Carburetor BS-807468
...
975
BOWL, Float BS-841650
...
987
SEAL, Choke/Throttle Shaft Not svcd individually BS-808183
