product name

Briggs and Stratton 541477-2240-H7

Model: 541477-2240-H7

Back To Assemblies

Save Part Not Listed?
product name

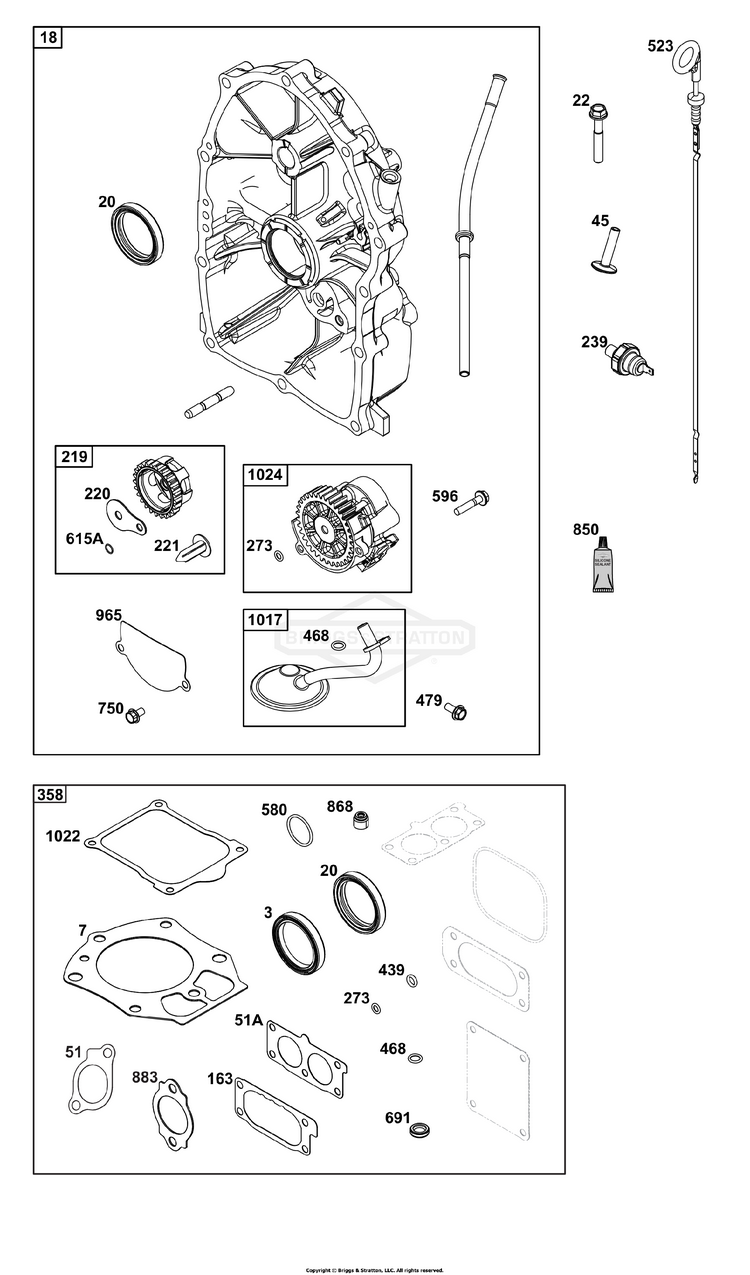

Crankcase Cover/Sump Group

...
...
18
COVER, Crankcase BS-848359
...
20
SEAL, Oil (PTO Side) BS-841596
...
22
SCREW (Crankcase Cover/Sump) BS-807362
...
219
GEAR, Governor BS-809426
...
220
WASHER (Governor Gear) BS-841608
...
221
CUP, Governor BS-841026
...
439
O-RING, Oil Gallery (Part information located in Lubrication Group.) BS-692154
...
615A
RETAINER, Governor Shaft BS-698290
...
850
MODULE KIT, TRACTOR BS-7063066YP
