Briggs and Stratton 541477-2240-H7

Model: 541477-2240-H7

Back To Assemblies

Save Part Not Listed?
product name

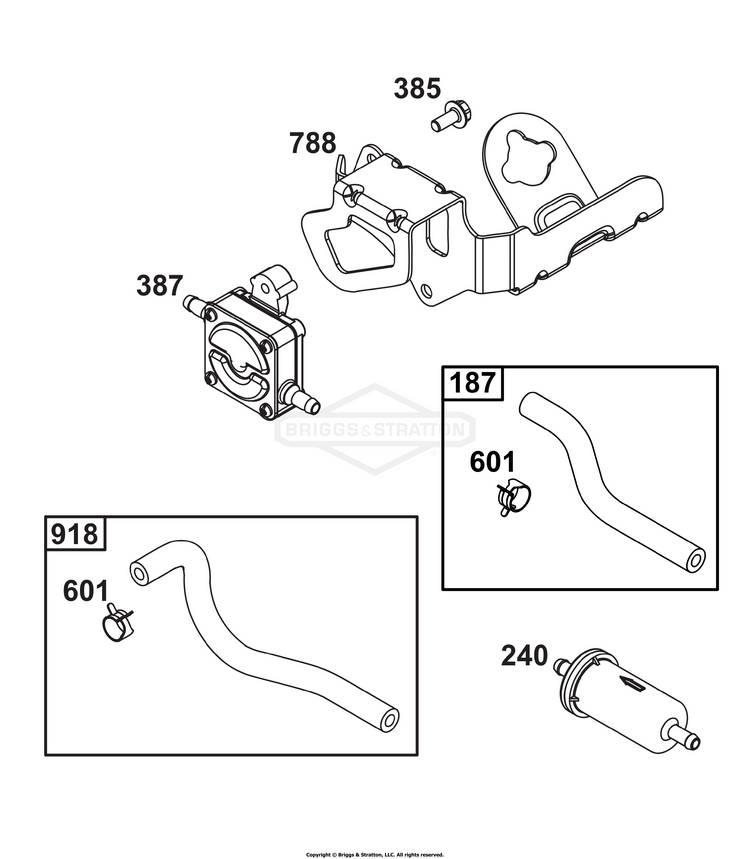

Fuel Supply Group

...
...
187
LINE, Fuel BS-791766
...
240
FILTER, Fuel BS-845125
...
385
SCREW (Fuel Pump) BS-807084
...
387
PUMP, Fuel BS-84003048
...
601
CLAMP, Hose BS-691038
...
788
BRACKET, Fuel Pump BS-844528
...
918
HOSE, Vacuum BS-844525
Schematic Image Zoomed
