Briggs and Stratton 540477-2225-01

Model: 540477-2225-01

Back To Assemblies

Save Part Not Listed?
product name

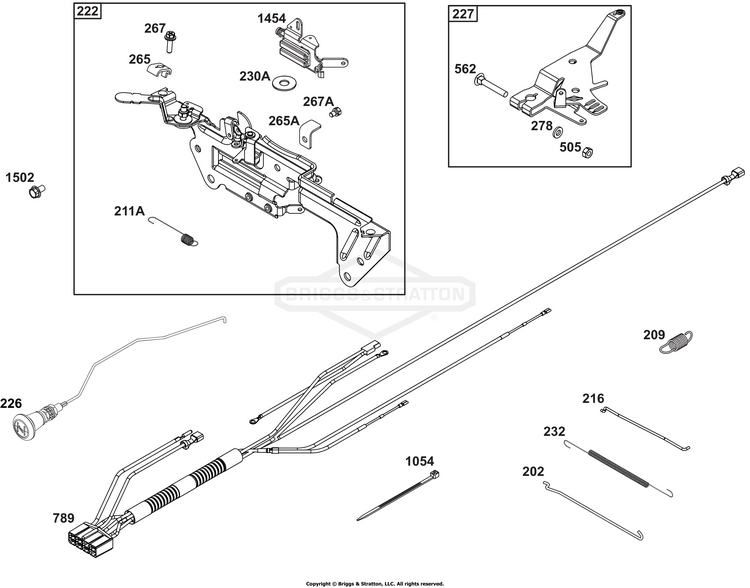

Controls Group

...
...
202
LINK, Mechanical Governor BS-841322
...
209
SPRING, Governor BS-809874
...
211A
SPRING, Governed Idle BS-690707
...
216
LINK, Choke BS-809788
...
222
BRACKET, Control BS-841528
...
226
ROD, Choke BS-841613
...
227
LEVER, Governor Control BS-809984
...
230A
WASHER (Control Bracket) BS-690260
...
232
SPRING/LINK, Governor BS-690545
...
265
CLAMP, Casing BS-841673
...
265A
CLAMP, Casing BS-691024
...
267
SCREW (Casing Clamp) BS-841552
...
267A
SCREW (Casing Clamp) BS-841552
...
278
WASHER (Governor Control Lever) BS-842122
...
505
NUT (Governor Control Lever) BS-844752
...
562
BOLT (Governor Control Lever) BS-843344
...
789
HARNESS, Wiring BS-847060
...
1054
TIE, Cable BS-280275
...
1454
SLIDER, Governor BS-845807
...
1502
SCREW BS-841233
