product name

Briggs and Stratton 540477-0127-G1

Model: 540477-0127-G1

Back To Assemblies

Save Part Not Listed?
product name

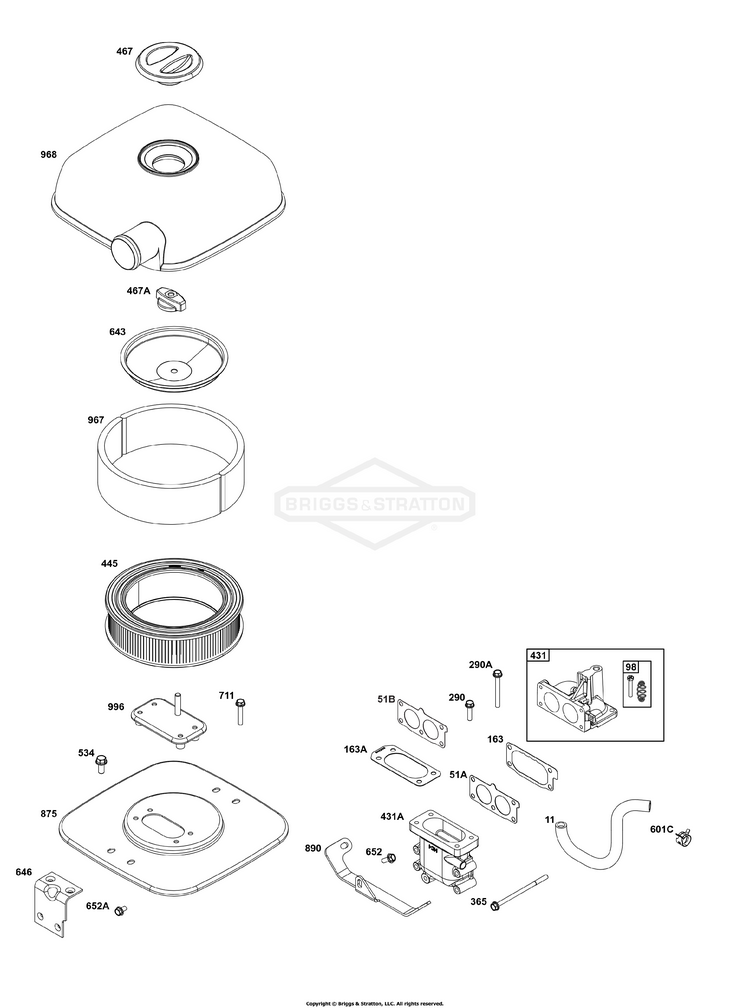

Air Cleaner Group

...
...
11
TUBE, Breather BS-809736
...
98
KIT, Idle Speed BS-841842
...
163
GASKET, Air Cleaner BS-807375
...
163A
GASKET, Air Cleaner BS-843117
...
290
SCREW (Intake Elbow) BS-807421
...
290A
SCREW (Intake Elbow) BS-809911
...
431
ELBOW, Intake BS-841539
...
431A
MANIFOLD, Intake BS-845505
...
445
FILTER, A/C Cartridge BS-692519
...
467
KNOB, Air Cleaner Cover BS-846008
...
467A
KNOB, Air Cleaner Cover BS-846432
...
534
SCREW (Air Cleaner) BS-692062
...
601C
CLAMP, Hose BS-844405
...
643
RETAINER, Air Cleaner BS-844932
...
646
BRACE, Air Cleaner BS-841849
...
652
SCREW (Support Bracket) BS-807084
...
652A
SCREW (Support Bracket) BS-841233
...
711
SCREW (Carburetor Shield) BS-807385
...
875
BASE, Air Cleaner BS-843118
...
890
BRACKET, Support BS-841614
...
967
FILTER, Pre Cleaner BS-692520
...
968
COVER, Air Cleaner BS-841847
...
996
SHIELD, Carburetor BS-846006
