Briggs and Stratton 49X977-0004-J1

Model: 49X977-0004-J1

Back To Assemblies

Save Part Not Listed?
product name

Blower Housing and Air Cleaner Group

...
...
166
STUD (Air Cleaner) BS-84004545
...
171
NUT (Air Cleaner) BS-690958
...
186A
CONNECTOR, Hose BS-845141
...
304
HOUSING, Blower BS-595600
...
305
SCREW (Blower Housing) BS-594618
...
305A
SCREW (Blower Housing) BS-557049
...
431
ELBOW, Intake BS-84003938
...
445
FILTER, A/C Cartridge BS-798897
...
467
KNOB, Air Cleaner Cover BS-790697
...
496
LEVER, Air Cleaner Filter BS-799095
...
563
SCREW (Debris Screen Guard) BS-698425
...
717
BRACKET, Air Cleaner BS-84004546
...
875
BASE, Air Cleaner BS-799094
...
949
GUARD, Debris Screen BS-594977
...
961
SCREW (Air Cleaner Bracket) BS-691108
...
968
COVER, Air Cleaner BS-799102
...
971
SCREW (Air Cleaner Base to Carburetor/Throttle Body) BS-698304
...
997
COVER, Blower Housing BS-592782
...
1319
LABEL, Warning (REQUIRED When Replacing Parts With Warning Labels Affixed) BS-794467
...
1319A
LABEL, Warning (REQUIRED When Replacing Parts With Warning Labels Affixed) BS-797669
...
1319B
LABEL, Warning (REQUIRED When Replacing Parts With Warning Labels Affixed) BS-278911GS
...
1406
VALVE, Debris BS-799096
...
1440
SCREW (Air Cleaner Base to Intake Elbow) BS-794904
...
1477
SCREW (Debris Shield) BS-799093

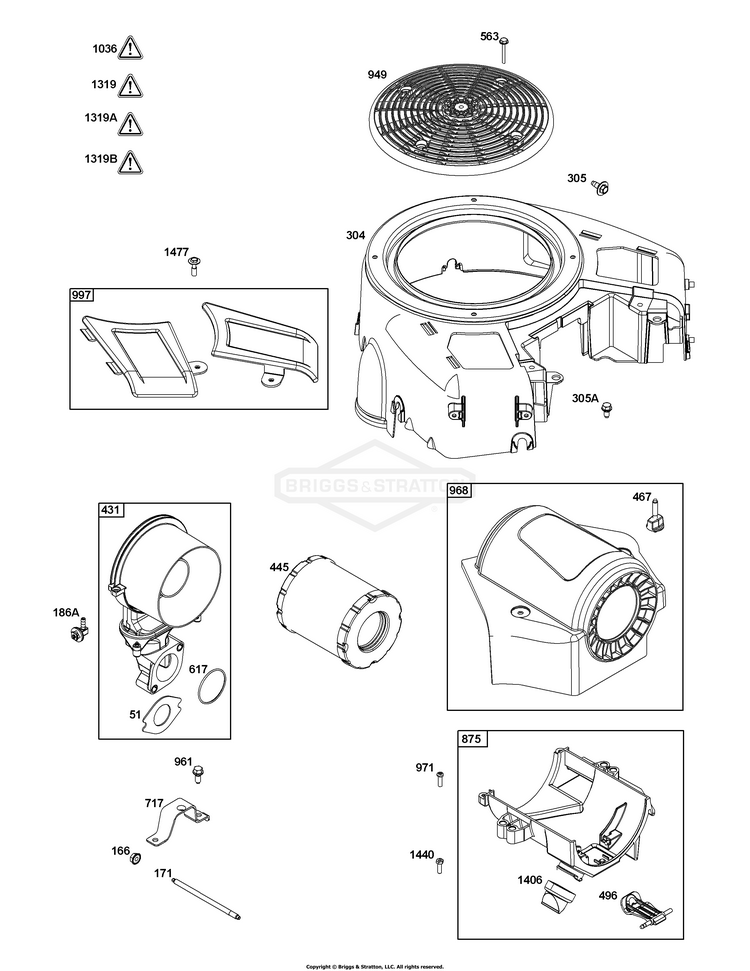

Schematic Image Zoomed
