Briggs and Stratton 49X977-0004-J1

Model: 49X977-0004-J1

Back To Assemblies

Save Part Not Listed?
product name

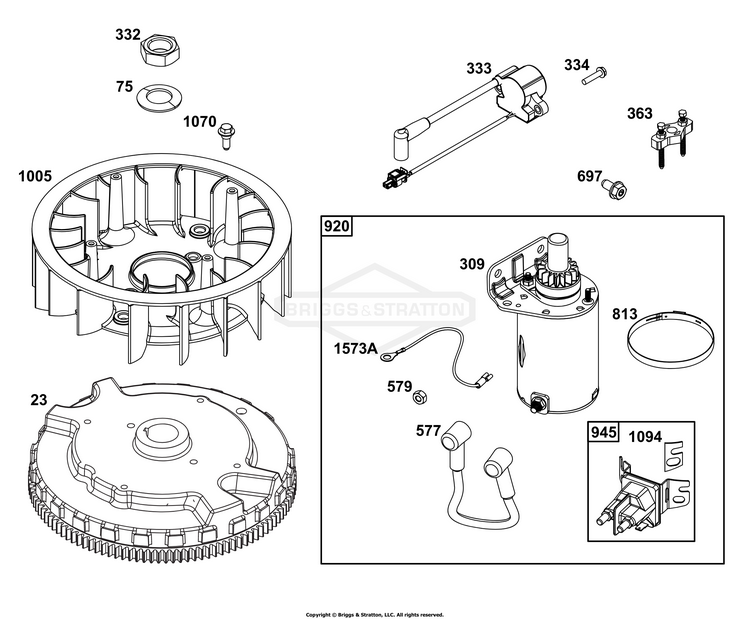

Flywheel, Ignition, and Starter Group

...
...
23
FLYWHEEL BS-84007415
...
75
WASHER (Flywheel) BS-691056
...
309
MOTOR, Starter BS-590476
...
332
NUT (Flywheel) BS-691059
...
333
ARMATURE, Magneto BS-84004106
...
334
SCREW (Magneto Armature) BS-593848
...
363
PULLER, Flywheel BS-19621
...
577
CABLE, Starter BS-690795
...
579
NUT (Starter Cable) BS-691029
...
697
SCREW (Starter Motor) (Drive Cap) BS-591909
...
813
CLAMP BS-595087
...
920
MOTOR, Starter BS-84004567
...
945
SOLENOID, Starter BS-595150
...
1005
FAN, Flywheel BS-593640
...
1070
SCREW (Flywheel Fan) BS-593638
...
1094
PAD, Solenoid BS-595170
