Briggs and Stratton 49S877-0112-Z1

Model: 49S877-0112-Z1

Back To Assemblies

Save Part Not Listed?
product name

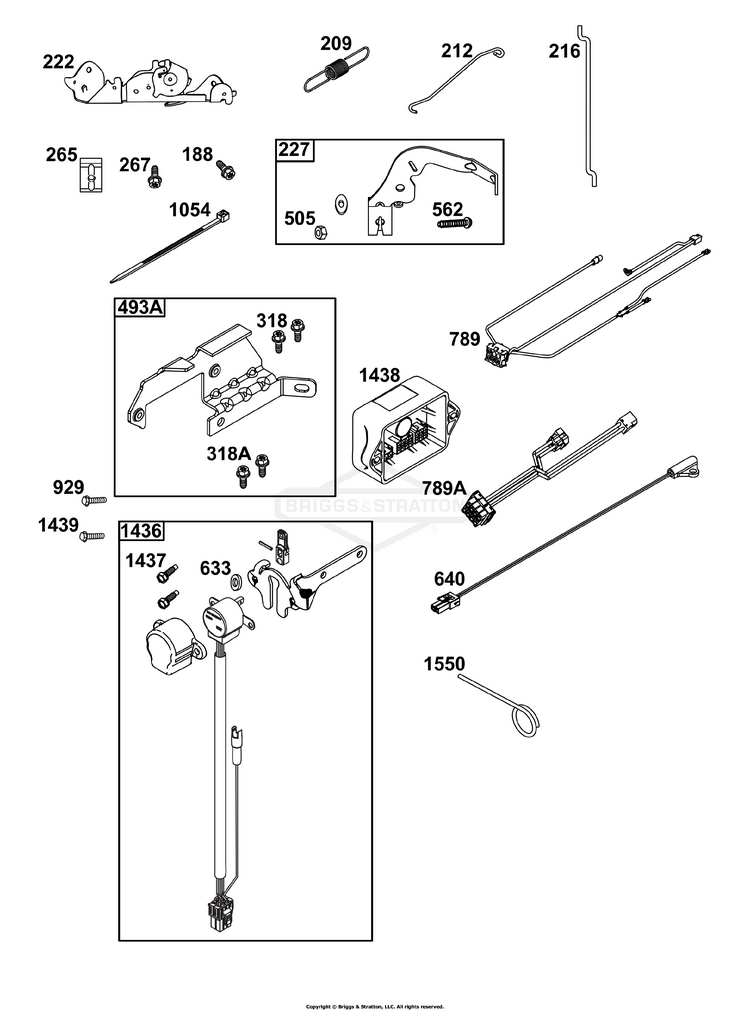

Controls Group

...
...
188
SCREW (Control Bracket) BS-691108
...
209
SPRING, Governor BS-591155
...
212
LINK, Throttle BS-695238
...
216
LINK, Choke BS-796879
...
222
BRACKET, Control BS-798916
...
227
LEVER, Governor Control BS-798856
...
265
CLAMP, Casing BS-691024
...
267
SCREW (Casing Clamp) BS-792629
...
318
SCREW BS-691127
...
318A
SCREW (Mounting Bracket) (Electronic Choke Module To Mounting Bracket) BS-792629
...
493A
BRACKET, Mounting BS-84001953
...
505
NUT (Governor Control Lever) BS-691029
...
562
BOLT (Governor Control Lever) BS-690311
...
633
SEAL, Choke/Throttle Shaft BS-699813
...
640
WIRE ASSEMBLY BS-796913
...
789
HARNESS, Wiring BS-796860
...
789A
HARNESS, Wiring BS-796914
...
929
SCREW (Choke Control Bracket) BS-691003
...
1054
TIE, Cable BS-280275
...
1436
MOTOR, Stepper/Bracket BS-796918
...
1437
SCREW (Stepper/Bracket Motor) BS-699891
...
1438
MODULE, Electronic Choke BS-796352S
...
1439
SCREW (Thermistor Wire Assembly) BS-794904
...
1550
PIN, Speed Setting BS-595801
