Briggs and Stratton 49R977-0029-Z1

Model: 49R977-0029-Z1

Back To Assemblies

Save Part Not Listed?
product name

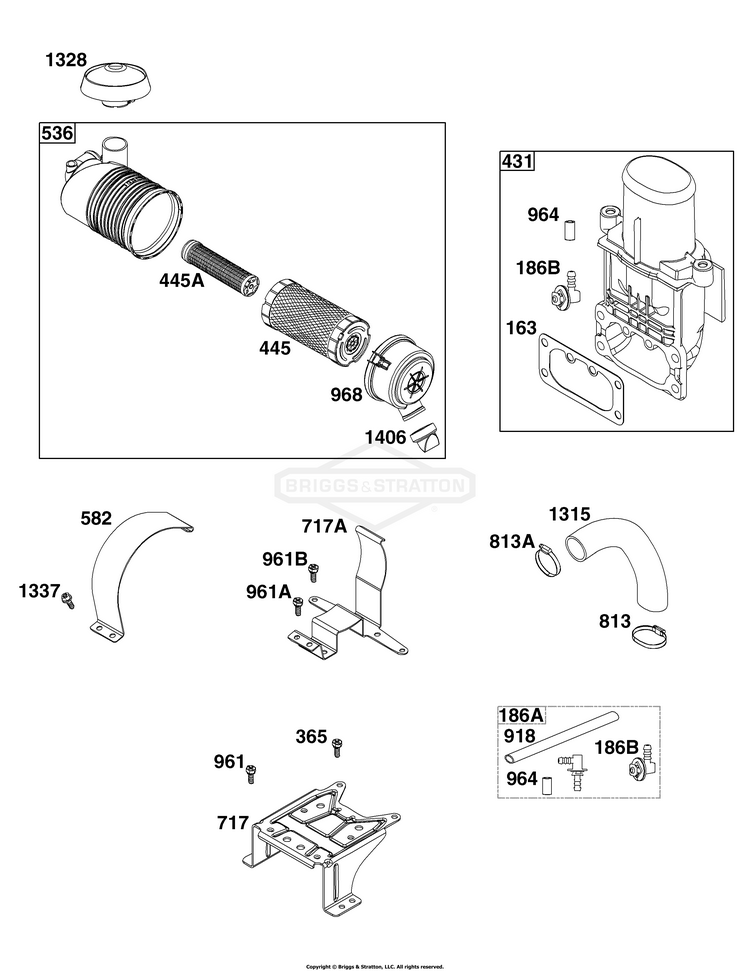

Air Cleaner Group

...
...
163
GASKET, Air Cleaner BS-691001
...
186A
CONNECTOR, Hose BS-799158
...
186B
CONNECTOR, Hose BS-845141
...
365
SCREW (Carburetor/Throttle Body) BS-593616
...
431
ELBOW, Intake BS-593630
...
445
FILTER, A/C Cartridge BS-841497
...
445A
FILTER, A/C Cartridge BS-821136
...
536
CLEANER, Air BS-593626
...
582
CLAMP, Air Cleaner BS-593618
...
717
BRACKET, Air Cleaner BS-593619
...
717A
BRACKET, Air Cleaner BS-593620
...
813
CLAMP BS-593624
...
813A
CLAMP BS-593625
...
918
HOSE, Vacuum BS-593641
...
961
SCREW (Air Cleaner Bracket) BS-691108
...
961A
SCREW (Air Cleaner Bracket) BS-593616
...
961B
SCREW (Air Cleaner Bracket) BS-593617
...
964
CAP, Connector BS-799159
...
968
COVER, Air Cleaner BS-593627
...
1315
HOSE, Air Cleaner BS-593623
...
1328
CAP, A/C Rain BS-809907
...
1337
SCREW (Air Cleaner Clamp) BS-593616
...
1406
VALVE, Debris BS-593628
