Briggs and Stratton 49R977-0015-B5

Model: 49R977-0015-B5

Back To Assemblies

Save Part Not Listed?
product name

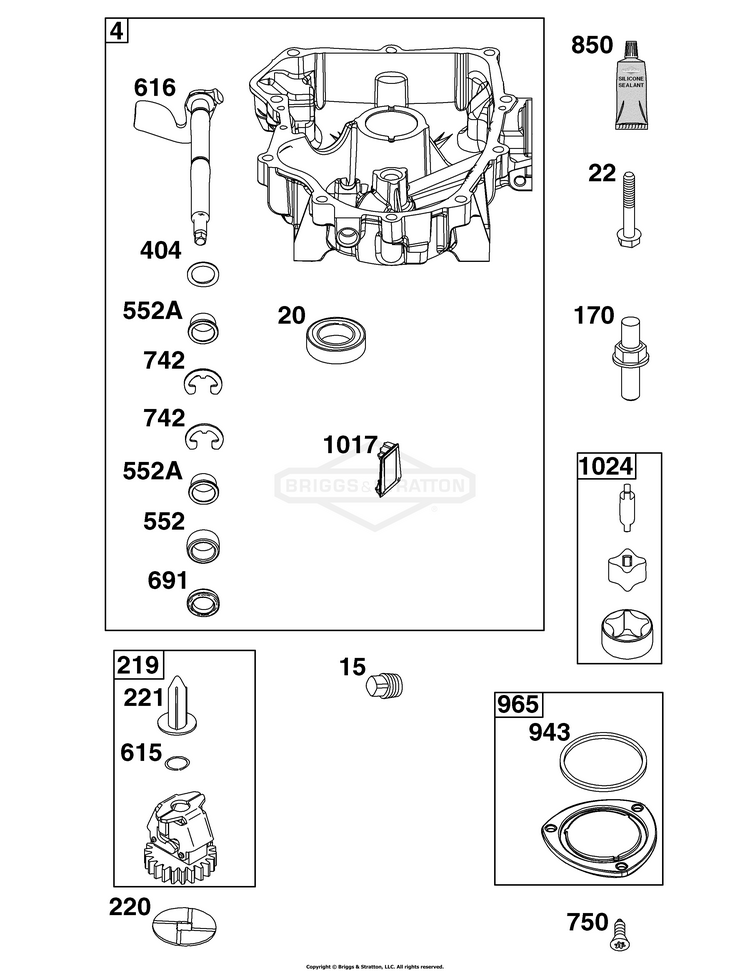

Sump Group

...
...
4
SUMP, Engine BS-84011648
...
15
PLUG, Oil Drain BS-690946
...
20
SEAL, Oil (PTO Side) BS-593644
...
22
SCREW (Crankcase Cover/Sump) BS-694966
...
170
STUD BS-593903
...
219
GEAR, Governor BS-793338
...
220
WASHER (Governor Gear) BS-799772
...
221
CUP, Governor BS-841026
...
404
WASHER (Governor Crank) BS-690442
...
552
BUSHING, Governor Crank BS-796638
...
552A
BUSHING, Governor Crank BS-690553
...
615
RETAINER, Governor Shaft BS-698290
...
616
CRANK, Governor BS-691045
...
691
SEAL, Governor Shaft BS-790574
...
742
RETAINER, E Ring BS-690328
...
750
SCREW (Oil Pump Cover) BS-796208
...
850
SEALANT, Liquid BS-100106
...
943
SEAL, O-Ring (Oil Pump Cover) BS-593642
...
965
COVER, Oil Pump BS-796221
...
1017
SCREEN, Oil Pump BS-796214
...
1024
PUMP, Oil BS-796220
