Briggs and Stratton 49R977-0015-B5

Model: 49R977-0015-B5

Back To Assemblies

Save Part Not Listed?
product name

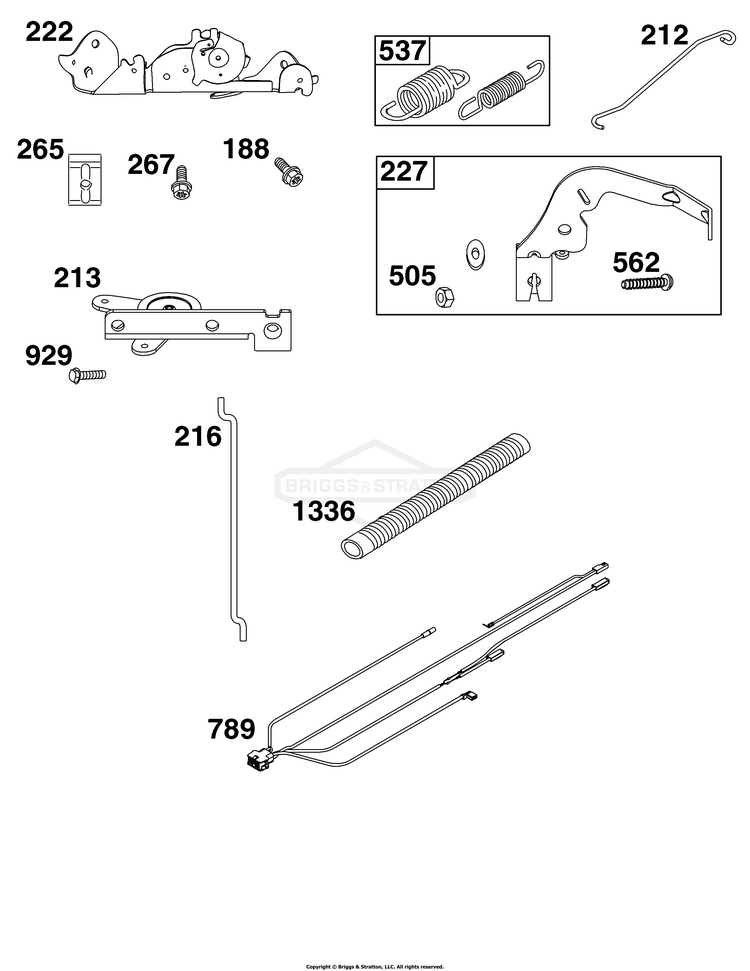

Controls Group

...
...
188
SCREW (Control Bracket) BS-691108
...
212
LINK, Throttle BS-695238
...
213
BRACKET, Choke Control BS-691021
...
216
LINK, Choke BS-691022
...
222
BRACKET, Control BS-798916
...
227
LEVER, Governor Control BS-798856
...
265
CLAMP, Casing BS-691024
...
267
SCREW (Casing Clamp) BS-792629
...
505
NUT (Governor Control Lever) BS-691029
...
537
KIT, Governor/Idle Spring BS-594912
...
562
BOLT (Governor Control Lever) BS-690311
...
789
HARNESS, Wiring BS-593611
...
929
SCREW (Choke Control Bracket) BS-691003
...
1336
SLEEVE, Fuel Line BS-846822
