Briggs and Stratton 49E877-0036-Z1

Model: 49E877-0036-Z1

Back To Assemblies

Save Part Not Listed?
product name

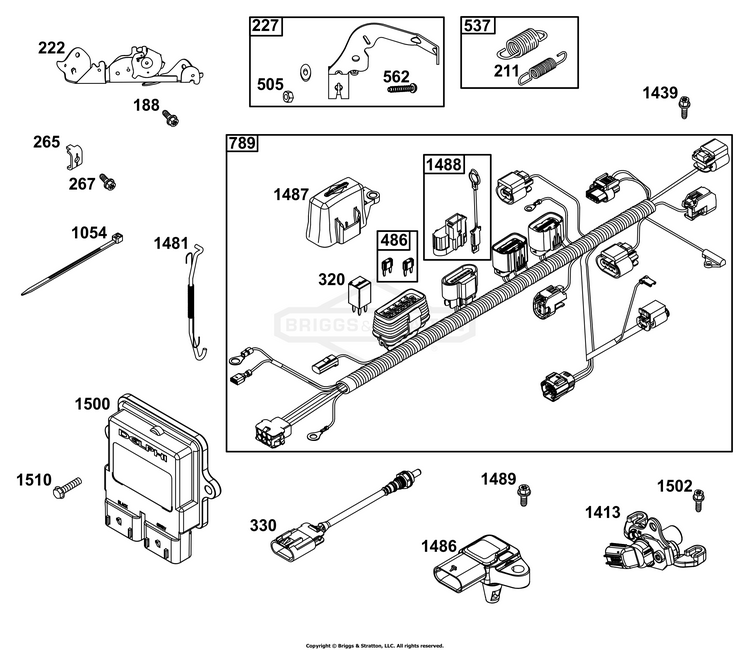

Controls Group

...
...
188
SCREW (Control Bracket) BS-691108
...
211
SPRING, Governed Idle BS-593724
...
222
BRACKET, Control BS-798916
...
227
LEVER, Governor Control BS-593857
...
265
CLAMP, Casing BS-691024
...
267
SCREW (Casing Clamp) BS-792629
...
320
RELAY(S) BS-593902
...
330
SENSOR, Oxygen BS-593870
...
486
FUSE BS-593901
...
505
NUT (Governor Control Lever) BS-691029
...
537
KIT, Governor/Idle Spring BS-594918
...
562
BOLT (Governor Control Lever) BS-690311
...
789
HARNESS, Wiring BS-593866
...
1054
TIE, Cable BS-280275
...
1413
SENSOR, Speed BS-84006538
...
1439
SCREW (Thermistor Wire Assembly) BS-592577
...
1481
LINK/SPRING ASSEMBLY BS-593853
...
1486
SENSOR, TEMPERATURE/PRESSURE BS-84013424
...
1487
COVER, Fuse BS-593900
...
1488
COVER, Diagnostic BS-593899
...
1489
SCREW (Temperature/Manifold Air Pressure Sensor) BS-691127
...
1500
MODULE, Electronic Control (Not Programmed) BS-846484
...
1502
SCREW (Speed Sensor) BS-594363
...
1510
SCREW (Electronic Control Module) BS-593848
