Briggs and Stratton 44S977-0048-G1

Model: 44S977-0048-G1

Back To Assemblies

Save Part Not Listed?
product name

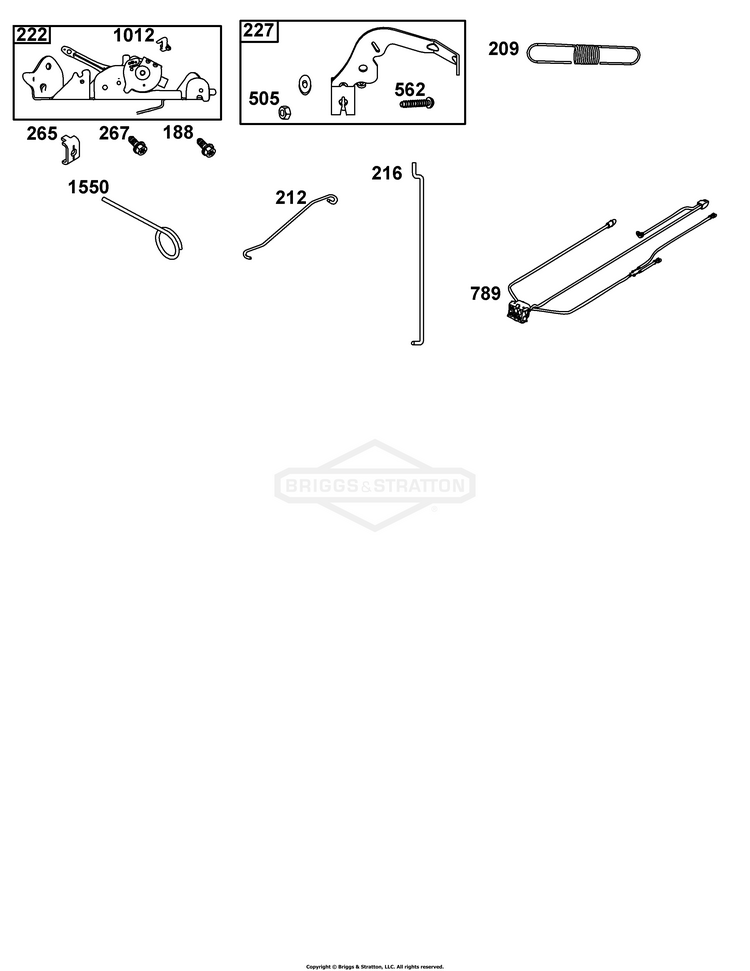

Controls Group

...
...
188
SCREW (Control Bracket) BS-691108
...
209
SPRING, Governor BS-799171
...
212
LINK, Throttle BS-695238
...
216
LINK, Choke BS-796229
...
222
BRACKET, Control BS-592555
...
227
LEVER, Governor Control BS-798856
...
265
CLAMP, Casing BS-691024
...
267
SCREW (Casing Clamp) BS-792629
...
505
NUT (Governor Control Lever) BS-691029
...
562
BOLT (Governor Control Lever) BS-690311
...
789
HARNESS, Wiring BS-591392
...
1012
RETAINER, Link BS-592556
...
1550
PIN, Speed Setting BS-595801
