Briggs and Stratton 44N677-0063-G1

Model: 44N677-0063-G1

Back To Assemblies

Save Part Not Listed?
product name

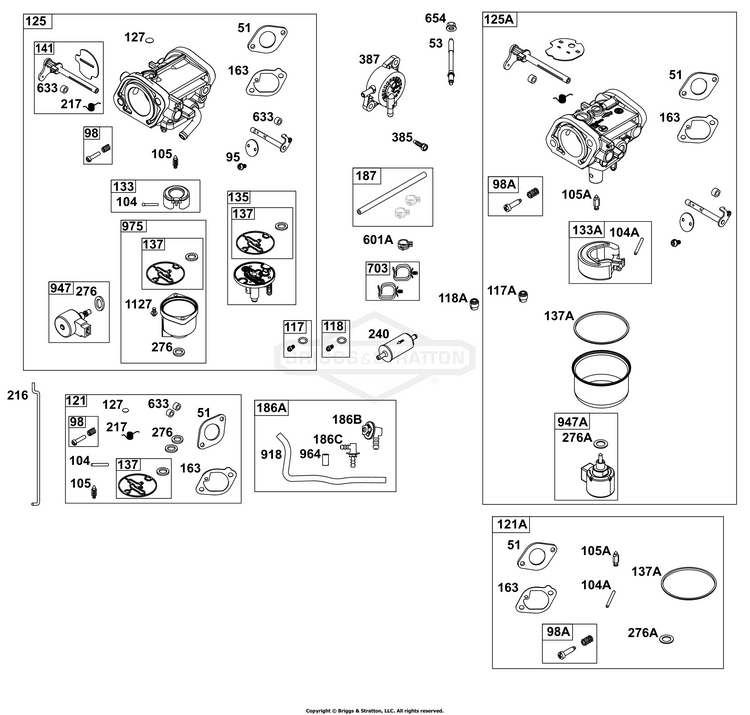

Carburetor and Fuel Supply Group

...
...
53
STUD (Carburetor) BS-690951
...
95
SCREW (Throttle Valve) (Used Before Code Date 21070100) BS-690718
...
98
KIT, Idle Speed (Used Before Code Date 21070100) BS-695408
...
98A
KIT, Idle Speed (Used After Code Date 21063000) BS-84006525
...
104
PIN, Float Hinge (Used Before Code Date 21070100) BS-694918
...
104A
PIN, Float Hinge (Used After Code Date 21063000) BS-690525
...
105
VALVE, Float Needle (Used Before Code Date 21070100) BS-698537
...
105A
VALVE, Float Needle (Used After Code Date 21063000) BS-84006524
...
117
JET, Main (Standard) (Used Before Code Date 21070100) BS-842585
...
117A
JET, Main (Standard) (Used After Code Date 21063000) BS-84006536
...
118
JET, Main (High Altitude) (Used Before Code Date 21070100) BS-791502
...
118A
JET, Main (High Altitude) (Used After Code Date 21063000) BS-84006537
...
121
KIT, Carburetor Overhaul (Service Kits may include extra parts not specific to this engine.) (Used Before Code Date 21070100) BS-84001917
...
121A
KIT, Carburetor Overhaul (Service Kits may include extra parts not specific to this engine.) (Used After Code Date 21063000) BS-84006526
...
125
CARBURETOR (Used Before Code Date 21070100) BS-594207
...
125A
CARBURETOR (Used After Code Date 21063000) BS-84006527
...
127
PLUG, Welch (Used Before Code Date 21070100) BS-699810
...
133
FLOAT, Carburetor (Used Before Code Date 21070100) BS-694914
...
133A
FLOAT, Carburetor (Used After Code Date 21063000) BS-494381
...
135
TUBE, Fuel Transfer (Used Before Code Date 21070100) BS-591701
...
137
GASKET, Float Bowl (Used Before Code Date 21070100) BS-698781
...
137A
GASKET, Float Bowl (Used After Code Date 21063000) BS-281165S
...
141
KIT, Choke Shaft (Used Before Code Date 21070100) BS-594211
...
163
GASKET, Intake BS-594203
...
186A
CONNECTOR, Hose BS-799158
...
186B
CONNECTOR, Hose BS-845141
...
186C
CONNECTOR, Hose BS-594428
...
187
LINE, Fuel BS-791766
...
217
SPRING, Choke Return (Used Before Code Date 21070100) BS-799771
...
240
FILTER, Fuel BS-84001895
...
276
WASHER, Sealing (Used Before Code Date 21070100) BS-695410
...
276A
WASHER, Sealing (Used After Code Date 21063000) BS-692255
...
385
SCREW (Fuel Pump) BS-797409
...
387
PUMP, Fuel BS-597338
...
601A
CLAMP, Hose BS-691038
...
633
SEAL, Choke/Throttle Shaft (Used Before Code Date 21070100) BS-699813
...
654
NUT (Carburetor) BS-690958
...
703
CLIP BS-691010
...
918
HOSE, Vacuum BS-799160
...
947
SOLENOID, Fuel (Used Before Code Date 21070100) BS-596039
...
947A
SOLENOID, Fuel (Used After Code Date 21063000) BS-84006867
...
975
BOWL, Float (Used Before Code Date 21070100) BS-591699
...
1127
SCREW (Float Bowl to Carburetor Body) (Used Before Code Date 21070100) BS-695407
