Briggs and Stratton 44C877-0010-B5

Model: 44C877-0010-B5

Back To Assemblies

Save Part Not Listed?
product name

Controls Group

...
...
188
SCREW (Control Bracket) BS-691003
...
209
SPRING, Governor BS-799170
...
212
LINK, Throttle BS-597778
...
213
BRACKET, Choke Control BS-799153
...
216
LINK, Choke BS-796879
...
222
BRACKET, Control BS-798916
...
227
LEVER, Governor Control BS-593857
...
232
SPRING, Governor Link BS-597550
...
265
CLAMP, Casing BS-691024
...
267
SCREW (Casing Clamp) BS-792629
...
318
SCREW (Mounting Bracket) BS-792629
...
493
BRACKET, Mounting BS-84001953
...
505
NUT (Governor Control Lever) BS-691029
...
562
BOLT (Governor Control Lever) BS-690311
...
633
SEAL, Choke/Throttle Shaft BS-691321
...
640
WIRE ASSEMBLY BS-796913
...
789
HARNESS, Wiring BS-796860
...
789A
HARNESS, Wiring BS-796914
...
929
SCREW (Choke Control Bracket) BS-695239
...
929A
SCREW (Choke Control Bracket) BS-794904
...
1436
MOTOR, Stepper/Bracket BS-799108
...
1437
SCREW (Stepper/Bracket Motor) BS-699891
...
1438
MODULE, Electronic Choke BS-796352S
...
1457
MOTOR, Stepper BS-597208
...
1550
PIN, Speed Setting BS-595801

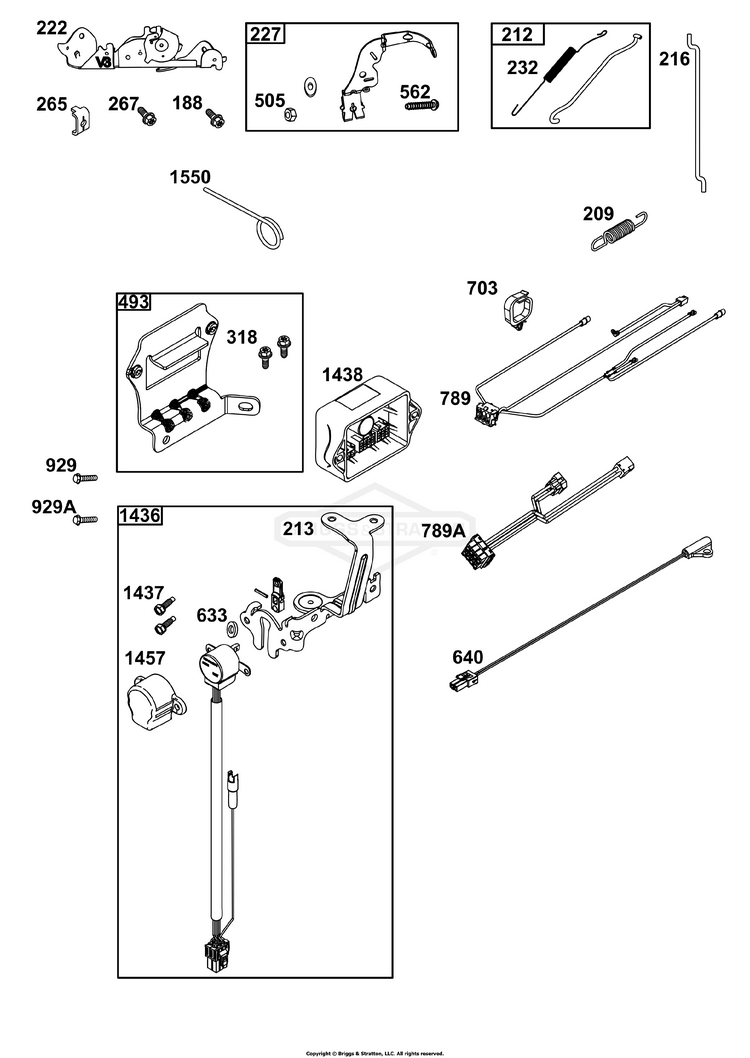

Schematic Image Zoomed
