Briggs and Stratton 44C777-0010-G1

Model: 44C777-0010-G1

Back To Assemblies

Save Part Not Listed?
product name

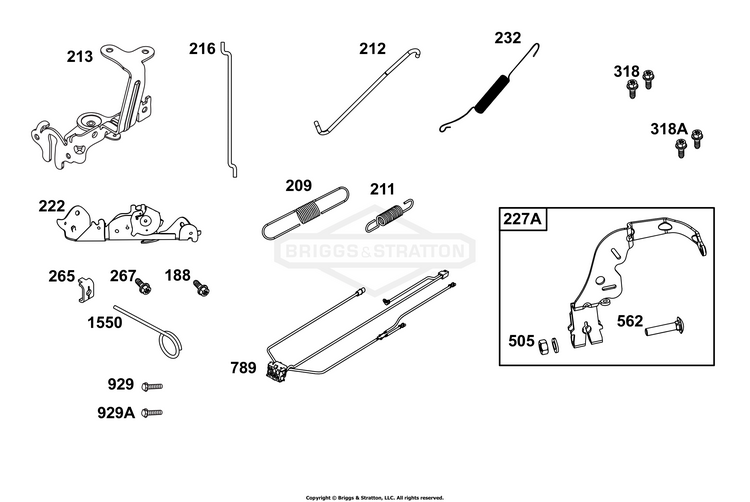

Controls Group

...
...
188
SCREW (Control Bracket) BS-691003
...
209
SPRING, Governor BS-798921
...
211
SPRING, Governed Idle BS-593724
...
212
LINK, Throttle BS-597778
...
213
BRACKET, Choke Control BS-799510
...
216
LINK, Choke BS-691022
...
222
BRACKET, Control BS-798916
...
227A
LEVER, Governor Control BS-593857
...
232
SPRING, Governor Link BS-597550
...
265
CLAMP, Casing BS-691024
...
267
SCREW (Casing Clamp) BS-792629
...
318
SCREW (Mounting Bracket) BS-691127
...
318A
SCREW (Mounting Bracket) BS-792629
...
505
NUT (Governor Control Lever) BS-691029
...
562
BOLT (Governor Control Lever) BS-690311
...
789
HARNESS, Wiring BS-591392
...
929
SCREW (Choke Control Bracket) BS-695239
...
929A
SCREW (Choke Control Bracket) BS-794904
...
1550
PIN, Speed Setting BS-595801
