Briggs and Stratton 40R677-0019-B5

Model: 40R677-0019-B5

Back To Assemblies

Save Part Not Listed?
product name

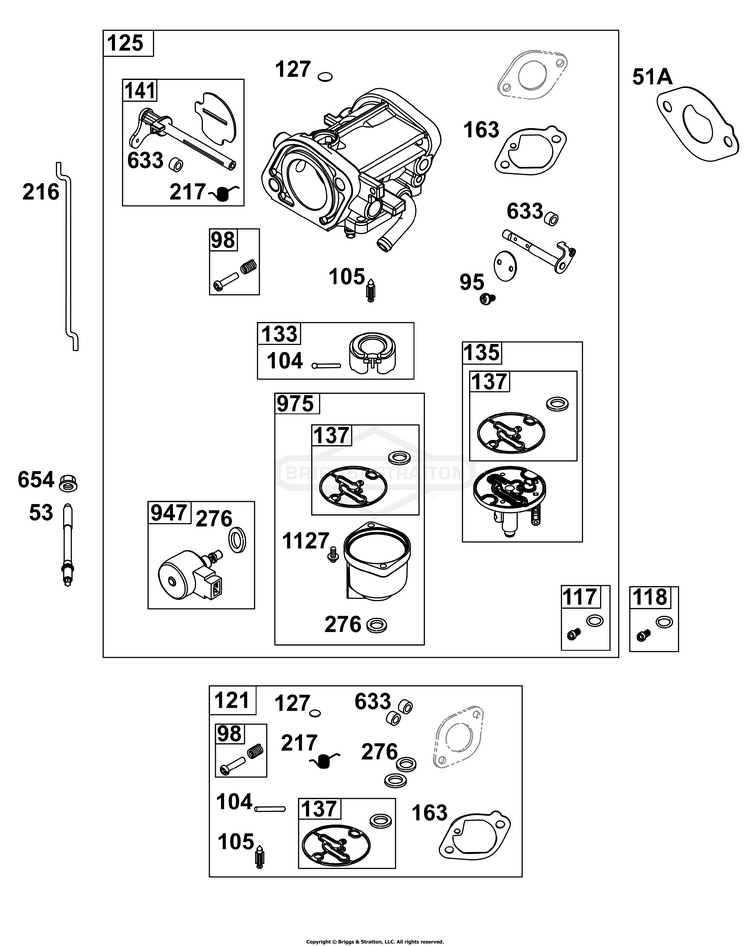

Carburetor Group

...
...
53
STUD (Carburetor) BS-690951
...
95
SCREW (Throttle Valve) BS-690718
...
98
KIT, Idle Speed BS-695408
...
104
PIN, Float Hinge BS-694918
...
105
VALVE, Float Needle BS-698537
...
117
JET, Main (Standard) BS-842585
...
118
JET, Main (High Altitude) BS-792296
...
121
KIT, Carburetor Overhaul (Service Kits can include parts not for this engine.) BS-84001917
...
125
CARBURETOR BS-594207
...
127
PLUG, Welch BS-699810
...
133
FLOAT, Carburetor BS-694914
...
135
TUBE, Fuel Transfer BS-591701
...
137
GASKET, Float Bowl BS-698781
...
141
KIT, Choke Shaft BS-594211
...
163
GASKET, Intake BS-594203
...
217
SPRING, Choke Return BS-799771
...
276
WASHER, Sealing BS-695410
...
633
SEAL, Choke/Throttle Shaft BS-699813
...
654
NUT (Carburetor) BS-690958
...
947
SOLENOID, Fuel BS-596039
...
975
BOWL, Float BS-591699
...
1127
SCREW (Float Bowl To Carburetor Body) BS-695407
