Briggs and Stratton 40N877-0068-B5

Model: 40N877-0068-B5

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

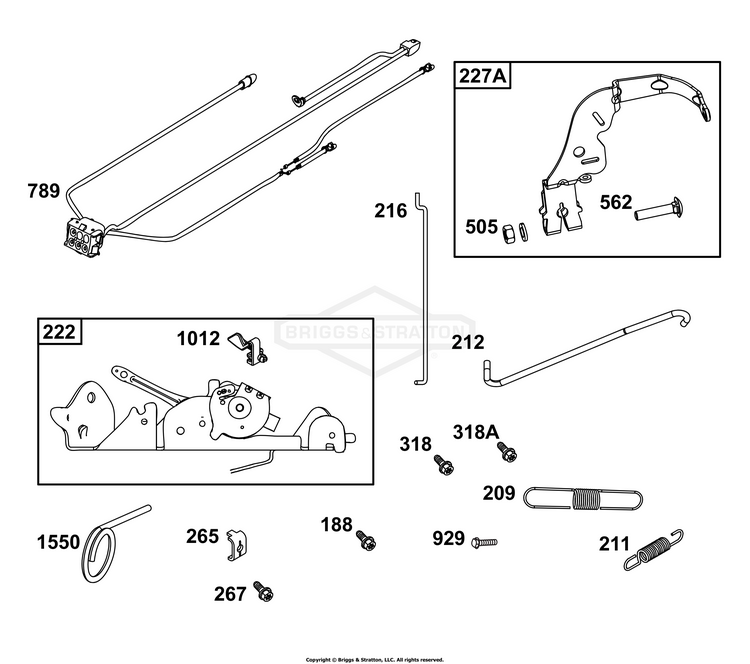

Controls Group

...
...
188
SCREW (Control Bracket) BS-691108
...
209
SPRING, Governor BS-799170
...
211
SPRING, Governed Idle BS-593724
...
212
LINK, Throttle BS-597778
...
222
BRACKET, Control BS-592555
...
227A
LEVER, Governor Control BS-593857
...
265
CLAMP, Casing BS-691024
...
267
SCREW (Casing Clamp) BS-792629
...
318
SCREW (Mounting Bracket) BS-691127
...
318A
SCREW (Mounting Bracket) BS-792629
...
505
NUT (Governor Control Lever) BS-691029
...
562
BOLT (Governor Control Lever) BS-690311
...
789
HARNESS, Wiring BS-591392
...
929
SCREW (Choke Control Bracket) BS-691003
...
1012
RETAINER, Link BS-592556
...
1550
PIN, Speed Setting BS-595801
