Briggs and Stratton 38E347-0124-01

Model: 38E347-0124-01

Back To Assemblies

Save Part Not Listed?
product name

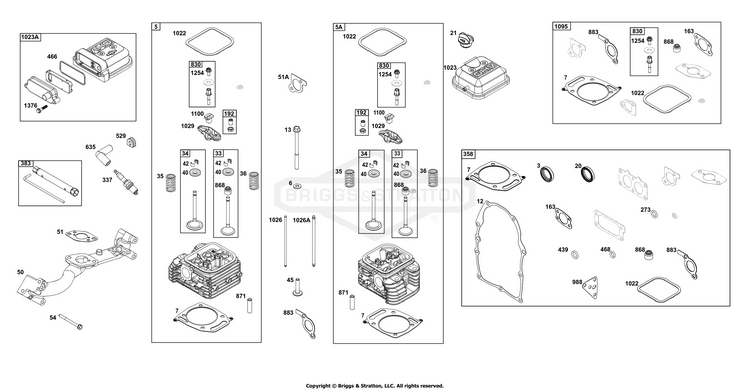

Cylinder Head Group

...
...
5
HEAD, Cylinder (Cylinder #1) BS-84002012
...
5A
HEAD, Cylinder (Cylinder #2) BS-84002013
...
6
WASHER (Cylinder Head) BS-84005965
...
7
GASKET, Cylinder Head BS-84006734
...
13
SCREW (Cylinder Head) BS-842618
...
21
CAP, Oil Fill BS-809500
...
33
VALVE, Exhaust BS-843752
...
34
VALVE, Intake BS-845712
...
35
SPRING, Valve (Intake) BS-692084
...
36
SPRING, Valve (Exhaust) BS-692084
...
40
RETAINER, Valve BS-692058
...
42
KEEPER, Valve BS-807683
...
45
TAPPET, Valve BS-843379
...
50
MANIFOLD, Intake BS-847137
...
51
GASKET, Intake BS-691694
...
51A
GASKET, Intake BS-806418
...
54
SCREW (Intake Manifold) BS-806444
...
192
ADJUSTER. Rocker Arm BS-807623
...
337
PLUG, Spark BS-792015
...
383
WRENCH, Spark Plug BS-19576S
...
466
SEAL, O-Ring (Breather Assembly) BS-806466
...
529
GROMMET BS-690744
...
635
BOOT, Spark Plug BS-692076
...
830
STUD, Rocker Arm BS-809157
...
868
SEAL, Valve (Exhaust) BS-691963
...
871
BUSHING, Valve Guide BS-84002672
...
1022
GASKET, Rocker Cover BS-806039S
...
1023
COVER, Rocker BS-690910
...
1023A
COVER, Rocker BS-843750
...
1026
ROD, Push (Intake) BS-691836
...
1026A
ROD, Push (Exhaust) BS-691758
...
1029
ARM, Rocker BS-84012342
...
1095
GASKET SET, Valve (Service Kits can include parts not for this engine.) BS-84006736
...
1100
PIVOT, Rocker Arm BS-791959
...
1254
SCREW (Rocker Arm Stud) BS-807084
...
1376
SCREW (Breather Reed Cover) BS-806421
