Briggs and Stratton 38E347-0123-G1

Model: 38E347-0123-G1

Back To Assemblies

Save Part Not Listed?
product name

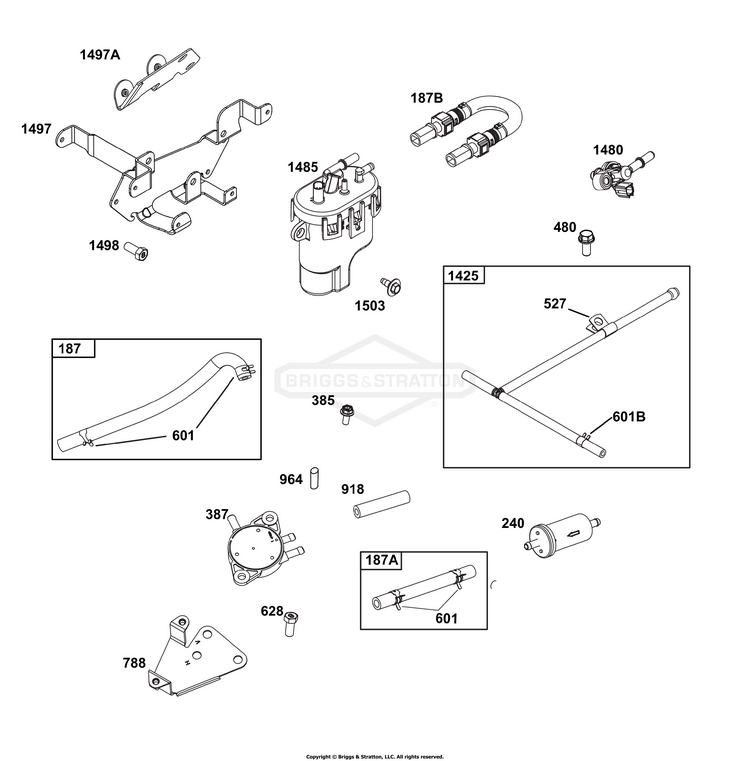

Fuel Supply Group

...
...
187
LINE, Fuel BS-846584
...
187A
LINE, Fuel BS-791766
...
187B
LINE, Fuel BS-847473
...
240
FILTER, Fuel BS-845125
...
385
SCREW (Fuel Pump) BS-807084
...
387
PUMP, Fuel BS-597338
...
480
SCREW (Tube Clamp) BS-692062
...
527
CLAMP, Hose BS-845268
...
601
CLAMP, Hose BS-691038
...
601B
CLAMP, Hose BS-593879
...
628
SCREW (Fuel Pump Bracket) BS-806660
...
788
BRACKET, Fuel Pump BS-691559
...
918
GASKET, Breather Passage BS-791760
...
964
CAP, Connector Used Brfore Code Date 19010800 BS-590799
...
964
CAP, Connector Used Before Code Date 20020300 BS-590799
...
1425
HOSE, Purge Line BS-847556
...
1480
INJECTOR, Fuel BS-846618
...
1485
MODULE, Fuel BS-593890
...
1497
BRACKET, Fuel Module BS-84001967
...
1497A
BRACKET, Fuel Module BS-84003014
...
1498
SCREW (Fuel Module Bracket) BS-84001969
...
1503
SCREW (Fuel Module) BS-594618
