Briggs and Stratton 38E347-0110-G1

Model: 38E347-0110-G1

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

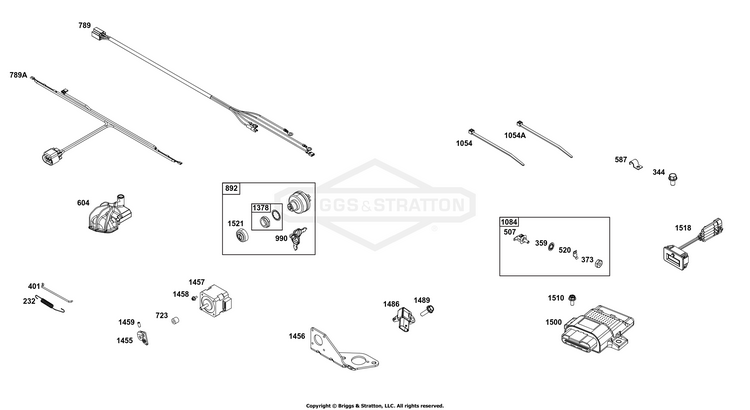

Controls Group

...
...
232
SPRING, Governor BS-847470
...
344
SCREW (Cable Clamp) BS-692056
...
359
WASHER (Ground Terminal) BS-691077
...
373
NUT, Hex #8-32 (Ground Terminal) BS-703460
...
401
LINK, Actuator BS-845814
...
507
INSULATOR BS-691972
...
520
TERMINAL, Ground BS-691084
...
587
CLAMP, Tube BS-690423
...
604
COVER, Control Stepper Motor BS-84001958
...
723
SEAL, Foam BS-845818
...
789
HARNESS, Wiring BS-847924
...
789A
HARNESS, Wiring BS-847176
...
892
SWITCH, Key BS-847448
...
990
SET, Key BS-691959
...
1054
TIE, Cable BS-280275
...
1054A
TIE, Cable 11" Long BS-5021029SM
...
1084
CONNECTOR, Terminal BS-848341
...
1378
SET, Washer/Nut BS-847144
...
1455
LEVER, Actuator BS-845813
...
1456
BRACKET, Mounting BS-845815
...
1457
MOTOR, STEPPER/BRACKET BS-84008479
...
1458
SCREW (Stepper Motor) BS-845812
...
1459
SCREW BS-845820
...
1486
SENSOR, TEMPERATURE/PRESSURE BS-84013424
...
1489
SCREW (Temperature/Manifold Air Pressure Sensor) BS-193626GS
...
1500
MODULE, Electronic Control (Not Programmed) BS-84001977
...
1510
SCREW (Electronic Control Module) BS-807084
...
1518
TACHOMETER BS-847016
...
1521
CAP, Switch BS-847150
