Briggs and Stratton 38E347-0108-G1

Model: 38E347-0108-G1

Back To Assemblies

Save Part Not Listed?
product name

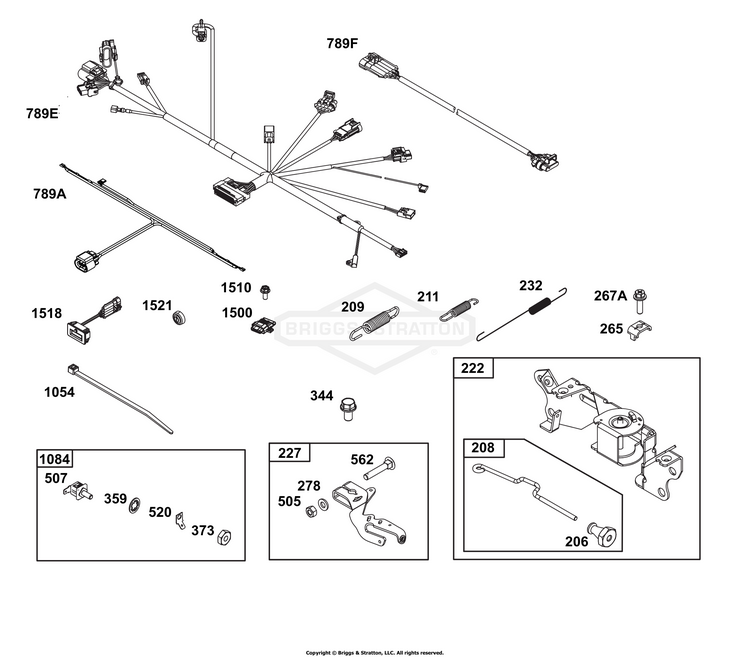

Controls Group

...
...
209
SPRING, Governor BS-844167
...
211
SPRING, Governed Idle BS-692069
...
222
BRACKET, Control BS-808454
...
227
LEVER, Governor Control BS-690236
...
232
SPRING, Governor link BS-848183
...
265
CLAMP, Casing BS-691024
...
267A
SCREW BS-841552
...
278
WASHER BS-842122
...
344
SCREW (Cable Clamp) (M8x14mm) BS-692056
...
359
WASHER (Ground Terminal) BS-691077
...
373
NUT, Hex #8-32 (Ground Terminal) BS-703460
...
505
NUT BS-844752
...
507
INSULATOR BS-691972
...
520
TERMINAL, Ground BS-691084
...
562
LEVER, Governor Control BS-844799
...
789A
HARNESS, Wiring BS-847176
...
789E
HARNESS, WIRING BS-84001970
...
789F
WIRE ASSEMBLY BS-847017
...
1054
TIE, Cable BS-280275
...
1084
CONNECTOR, Terminal BS-848341
...
1500
MODULE, Electronic Control (Not Programmed) BS-84001977
...
1510
SCREW (Electronic Control Module) (M6x14mm) BS-807084
...
1518
TACHOMETER BS-847016
...
1521
CAP, Switch BS-847150
