Briggs and Stratton 389575-0117-E1

Model: 389575-0117-E1

Back To Assemblies

Save Part Not Listed?
product name

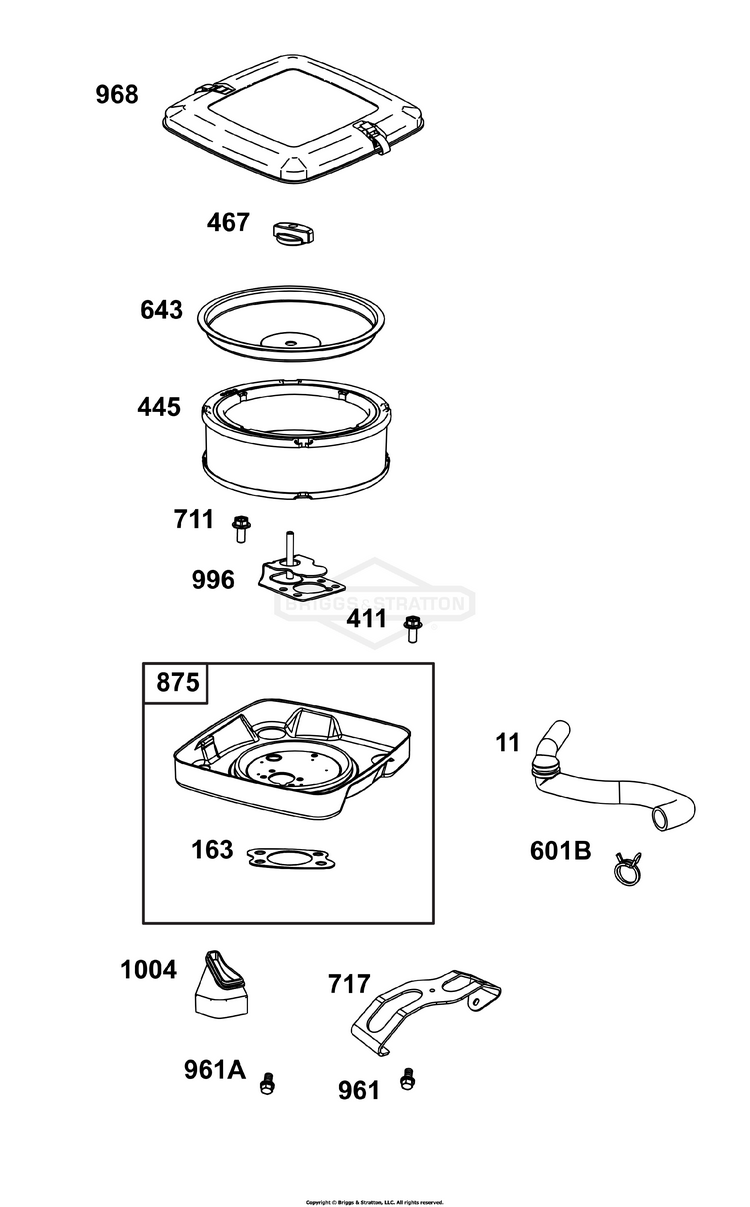

Air Cleaner Group

...
...
11
TUBE, Breather BS-844976
...
163
GASKET, Air Cleaner (Air Cleaner) BS-692081
...
411
SCREW (Air Cleaner Base to Air Cleaner Bracket) BS-807084
...
445
FILTER, A/C Cartridge BS-841359
...
467
KNOB, Air Cleaner Cover (M6 Thread) BS-846431
...
601B
CLAMP, Hose (Breather Tube) BS-843438
...
643
RETAINER, Air Cleaner BS-844932
...
711
SCREW (Carburetor Shield) BS-807084
...
717
BRACKET, Air Cleaner BS-84011121
...
875
BASE, Air Cleaner BS-844974
...
961
SCREW (Air Cleaner Bracket) (M6x14mm) BS-807084
...
961A
SCREW (Air Cleaner Bracket) (M6x10mm) BS-841233
...
968
COVER, Air Cleaner BS-699959
...
996
SHIELD, Carburetor (M6 Stud) BS-844930
...
1004
DUCT, Air BS-842258
