product name

Briggs and Stratton 389447-0127-E1

Model: 389447-0127-E1

Back To Assemblies

Save Part Not Listed?
product name

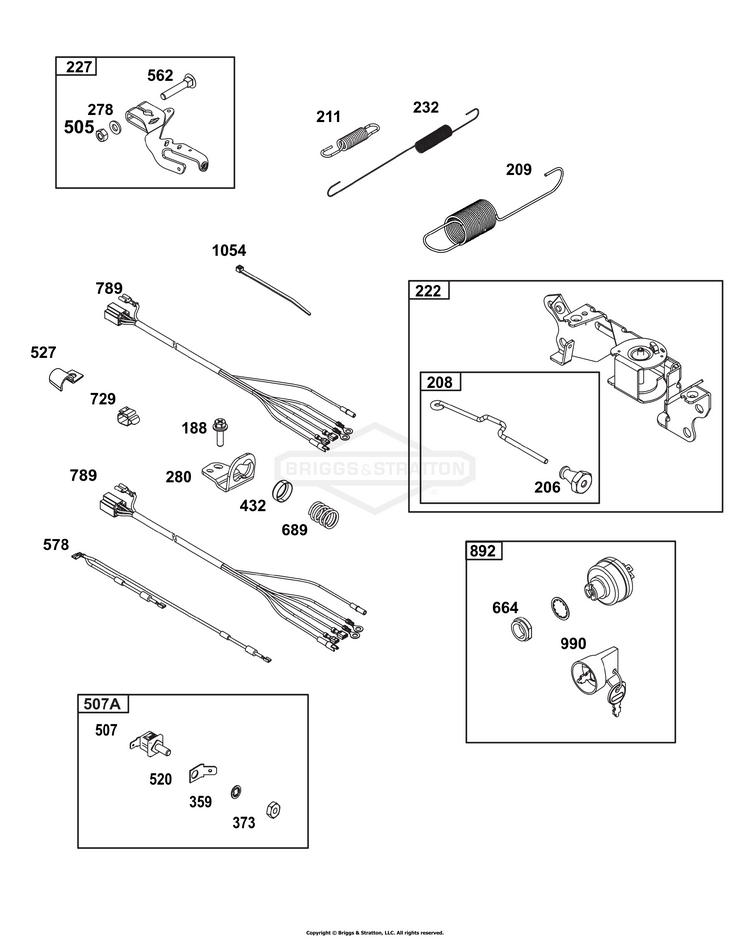

Controls Group

...
...
188
SCREW (Control Bracket) BS-699479
...
206
NUT, Governor Adjusting BS-691244
...
208
ROD, Governor Control BS-808453
...
209
SPRING, Governor BS-691546
...
209
SPRING, Governor BS-692071
...
211
SPRING, Governed Idle BS-691504
...
222
BRACKET, Control BS-808454
...
227
LEVER, Governor Control BS-845150
...
232
SPRING, Governor Link BS-692073
...
278
WASHER (Governor Control Lever) BS-842122
...
280
BRACKET, Fixed Speed BS-691526
...
359
WASHER (Ground Terminal) BS-691077
...
373
NUT, Hex #8-32 (Ground Terminal) BS-703460
...
432
CAP, Spring BS-691509
...
505
NUT (Governor Control Lever) BS-844752
...
507
INSULATOR BS-691972
...
507A
CONNECTOR, Terminal BS-848341
...
520
TERMINAL, Ground BS-691084
...
527
CLAMP, Tube BS-690423
...
562
LEVER, Governor Control (Governor Control Lever) BS-844799
...
578
HARNESS, WIRING BS-84013450
...
664
NUT (Key Switch) BS-691087
...
689
SPRING, Friction BS-691272
...
729
CLIP, Wire BS-690586
...
729
CLIP, Wire BS-593826
...
789
HARNESS, Wiring BS-691996
...
892
SWITCH, Key BS-692318
...
990
SET, Key BS-691959
...
1054
TIE, Cable 11" Long BS-5021029SM
