Briggs and Stratton 386447-3338-F1

Model: 386447-3338-F1

Back To Assemblies

Save Part Not Listed?
product name

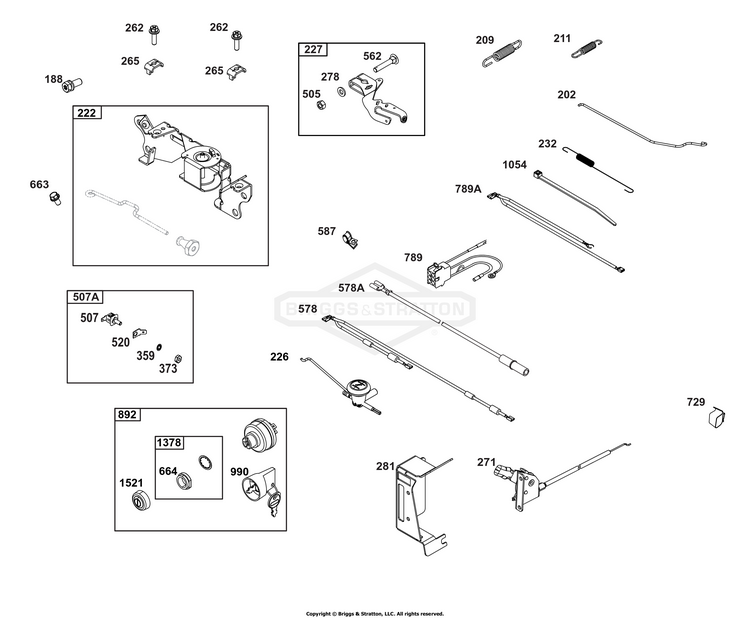

Controls Group

...
...
188
SCREW (Control Bracket) BS-692062
...
202
LINK, Mechanical Governor BS-691536
...
209
SPRING, Governor BS-692070
...
211
SPRING, Governed Idle BS-692069
...
222
BRACKET, Control BS-808454
...
226
ROD, Choke BS-846564
...
227
LEVER, Governor Control BS-690236
...
232
SPRING/LINK, Governor BS-691538
...
262
SCREW BS-841552
...
265
CLAMP, Casing BS-691024
...
271
LEVER, Control BS-692541
...
278
WASHER (Governor Control Lever) BS-842122
...
281
PANEL, Control BS-690742
...
359
WASHER (Ground Terminal) BS-691077
...
373
NUT, Hex #8-32 (Ground Terminal) BS-703460
...
505
NUT (Governor Control Lever) BS-844752
...
507
INSULATOR BS-691972
...
507A
CONNECTOR, Terminal BS-848341
...
520
TERMINAL, Ground BS-691084
...
562
LEVER, Governor Control (Governor Control Lever) BS-844799
...
578
HARNESS, WIRING BS-84013450
...
578A
WIRE, Stop BS-807063
...
587
CLAMP, Tube BS-690423
...
663
SCREW (Control Panel) BS-841552
...
664
NUT (Key Switch) BS-691087
...
729
CLIP, Wire BS-593826
...
789
HARNESS, Wiring BS-847924
...
789A
HARNESS, WIRING BS-84012952
...
892
SWITCH, Key BS-847448
...
990
SET, Key BS-691959
...
1054
TIE, Cable BS-280275
...
1378
SET, Washer/Nut BS-847144
...
1521
CAP, Switch BS-847150
