Briggs and Stratton 386447-3338-F1

Model: 386447-3338-F1

Back To Assemblies

Save Part Not Listed?
product name

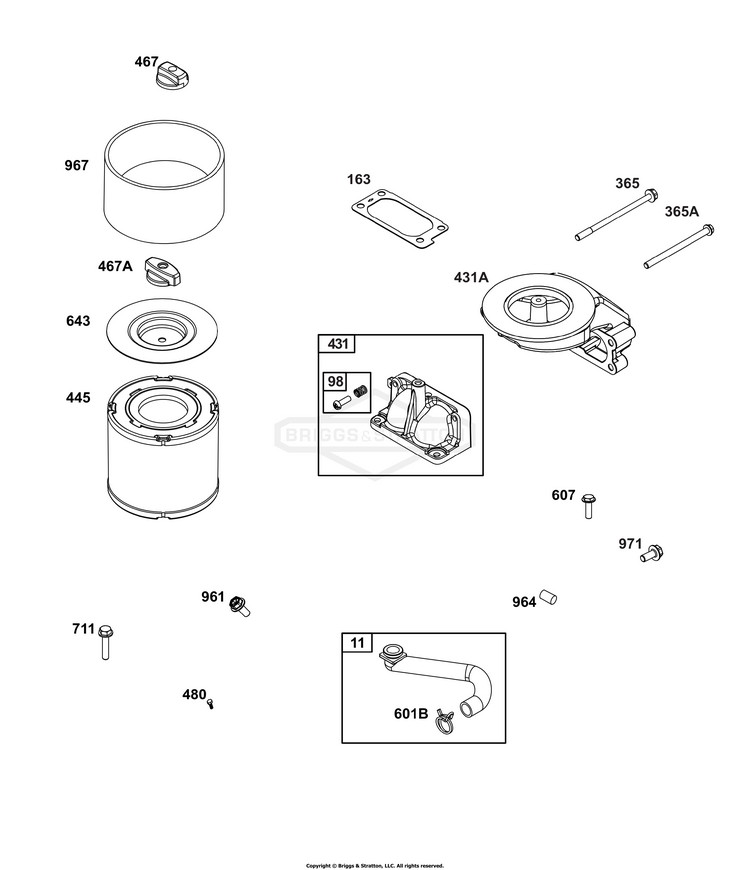

Air Cleaner Group

...
...
11
TUBE, Breather BS-846565
...
98
KIT, Idle Speed BS-843545
...
163
GASKET, Air Cleaner BS-692087
...
431
ELBOW, INTAKE BS-84013125
...
431A
MANIFOLD, INTAKE BS-84007777
...
445
FILTER, A/C Cartridge BS-845090
...
467
KNOB, Air Cleaner Cover BS-846431
...
467A
KNOB, Air Cleaner Cover BS-844618
...
480
SCREW (Tube Clamp) BS-806660
...
601B
CLAMP, Hose BS-691145
...
607
SCREW (Air Cleaner Brace) BS-841233
...
643
RETAINER, Air Filter BS-845087
...
711
SCREW (Carburetor Shield) BS-691492
...
961
SCREW (Air Cleaner Bracket) BS-807084
...
964
CAP, Carburetor BS-807468
...
967
FILTER, Pre Cleaner BS-271794S
...
971
SCREW (Air Cleaner Base To Carburetor/Throttle Body) BS-807084
