Briggs and Stratton 386447-0469-B5

Model: 386447-0469-B5

Back To Assemblies

Save Part Not Listed?
product name

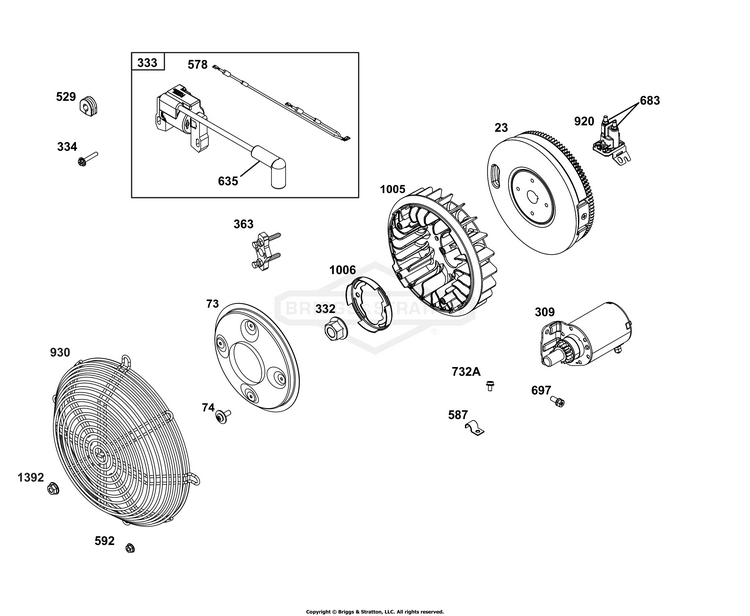

Flywheel, Ignition, and Starter Group

...
...
23
FLYWHEEL ASSEMBLY BS-841050
...
73
SCREEN, Rotating BS-841662
...
74
SCREW (Rotating Screen) BS-84007750
...
309
MOTOR, Starter BS-847693
...
332
NUT (Flywheel) BS-690887
...
333
ARMATURE, MAGNETO BS-84013449
...
334
SCREW (Magneto Armature) BS-692066
...
363
PULLER, Flywheel (71.5mm (2.81in.)) BS-19203
...
529
GROMMET BS-690744
...
587
CLAMP, Tube BS-690423
...
592
NUT BS-690939
...
683
NUT (Starter Solenoid) BS-845758
...
697
SCREW (Starter Motor) BS-806474
...
732A
SCREW (Starter Drive Cover) (M6x10mm) BS-841233
...
920
SOLENOID, Starter BS-84008635
...
930
GUARD, Flywheel Fan BS-846284
...
1005
FAN, Flywheel BS-841439
...
1006
RETAINER, Fan BS-690452
...
1392
NUT BS-690939
