Briggs and Stratton 386447-0425-G1

Model: 386447-0425-G1

Back To Assemblies

Save Part Not Listed?
product name

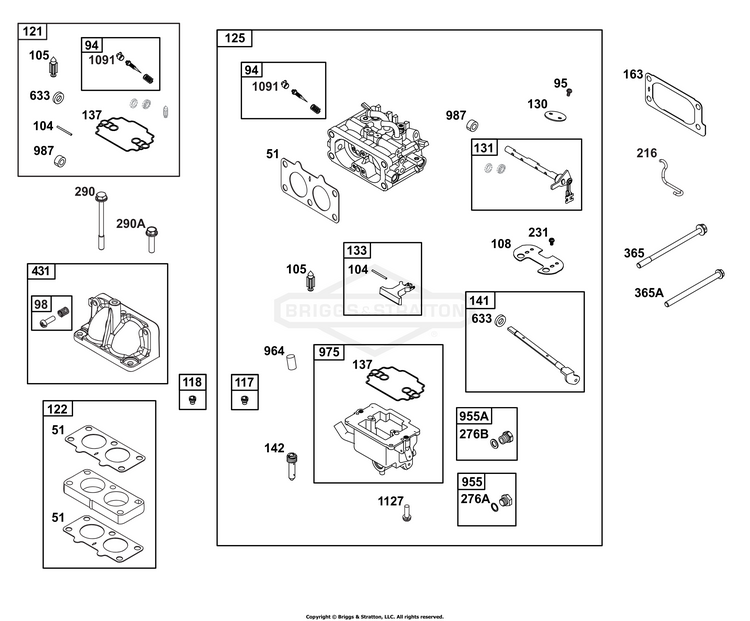

Carburetor Group

...
...
94
KIT, Idle Mixture BS-842870
...
95
SCREW (Throttle Valve) BS-690718
...
104
PIN, Float Hinge BS-690882
...
105
VALVE, Float Needle BS-846635
...
108
VALVE, Choke BS-690883
...
117
JET, Main (Standard) (Left Jet) BS-806438
...
117
JET, Main (Standard) (Right Jet) BS-806439
...
118
JET, Main (High Altitude) (Left Jet) BS-841670
...
118
JET, Main (High Altitude) (Right Jet) BS-693500
...
121
KIT, Carburetor Overhaul (Service Kits can include parts not for this engine.) BS-843103
...
122
SPACER, Carburetor BS-690870
...
125
CARBURETOR BS-808626
...
130
VALVE, Throttle BS-690884
...
131
SHAFT, Throttle BS-808182
...
133
FLOAT, Carburetor BS-808180
...
137
GASKET, Carburetor Body BS-693711
...
141
SHAFT, Choke BS-808277
...
142
NOZZLE, Carburetor BS-806375
...
216
LINK, Choke BS-691542
...
231
SCREW (Choke Valve) BS-690718
...
276A
WASHER, Sealing BS-693497
...
276B
WASHER, Sealing BS-690724
...
290
SCREW BS-691537
...
290A
SCREW BS-691492
...
365
SCREW (Carburetor/Throttle Body) BS-847021
...
365A
SCREW (Carburetor/Throttle Body) BS-690866
...
633
SEAL, Choke/Throttle Shaft BS-690722
...
955
PLUG, Carburetor BS-808176
...
955A
PLUG, Carburetor BS-807723
...
975
BOWL, Float BS-841160
...
987
SEAL, Throttle Shaft BS-691000
...
1091
CAP, Limiter BS-691516
...
1127
SCREW (Float Bowl To Carburetor Body) BS-690885
