Briggs and Stratton 385777-0010-B5

Model: 385777-0010-B5

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

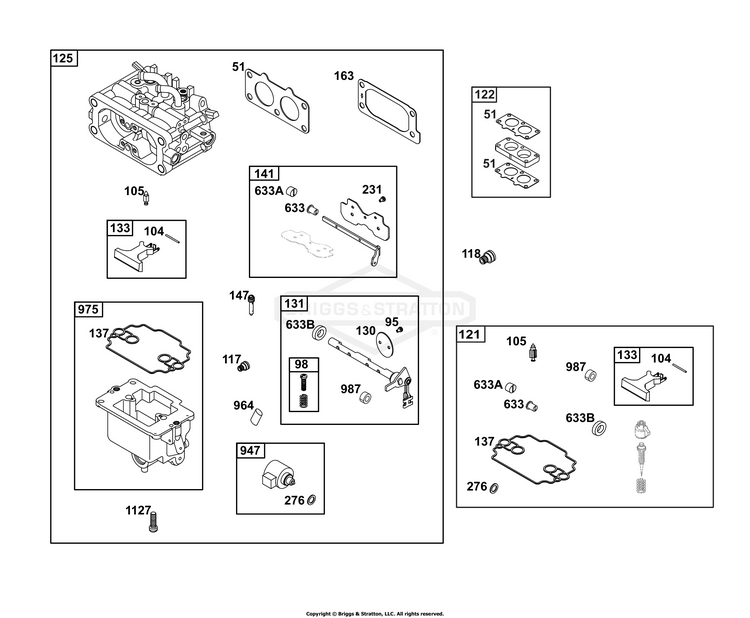

Carburetor Group

...
...
95
SCREW (Throttle Valve) BS-690718
...
98
KIT, Idle Speed BS-809716
...
104
PIN, Float Hinge BS-690739
...
105
VALVE, Float Needle BS-809759
...
117
JET, Main (Standard) BS-809635
...
118
JET, Main (High Altitude) BS-842153
...
121
KIT, Carburetor Overhaul (Service Kits can include parts not for this engine.) BS-843787
...
122
SPACER, Carburetor BS-690870
...
125
CARBURETOR BS-84003949
...
130
VALVE, Throttle BS-809642
...
131
KIT, Throttle Shaft BS-842068
...
133
FLOAT, Carburetor BS-809637
...
137
GASKET, Float Bowl BS-809645
...
141
KIT, Choke Shaft BS-843785
...
147
JET, Pilot BS-845727
...
231
SCREW (Choke Valve) BS-690718
...
276
WASHER, Sealing BS-806476
...
633
SEAL, Choke/Throttle Shaft BS-809638
...
633A
SEAL, Choke/Throttle Shaft BS-809644
...
633B
SEAL, Choke/Throttle Shaft BS-809641
...
947
SOLENOID, Fuel BS-842109
...
964
CAP, Connector BS-809640
...
975
BOWL, Float BS-809717
...
987
SEAL, Choke/Throttle Shaft BS-809639
...
1127
SCREW (Float Bowl To Carburetor Body) BS-809715
