Briggs and Stratton 385777-0010-B5

Model: 385777-0010-B5

Back To Assemblies

Save Part Not Listed?
product name

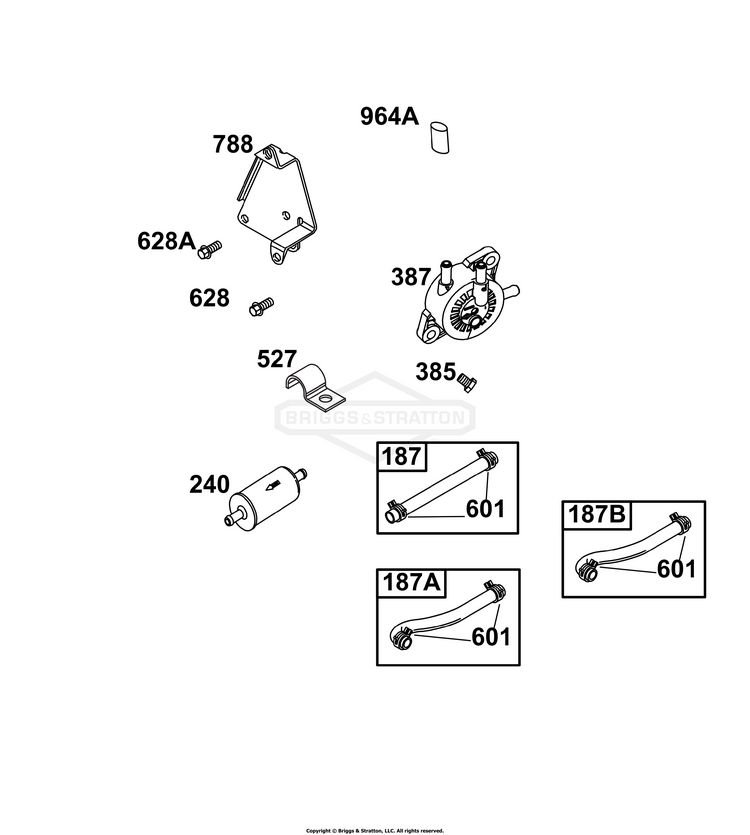

Fuel Supply Group

...
...
187
LINE, Fuel BS-791766
...
187A
LINE, Fuel BS-791744
...
187B
GASKET, Breather Passage BS-791760
...
240
FILTER, Fuel BS-845125
...
385
SCREW (Fuel Pump) BS-807084
...
387
PUMP, Fuel BS-597338
...
527
CLAMP, Tube BS-690423
...
601
CLAMP, Hose BS-691038
...
628
SCREW BS-692056
...
628A
SCREW (Fuel Pump Bracket) BS-806660
...
788
BRACKET, Fuel Pump BS-691559
...
964A
CAP, Connector BS-590799
