Briggs and Stratton 385447-0469-B5

Model: 385447-0469-B5

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

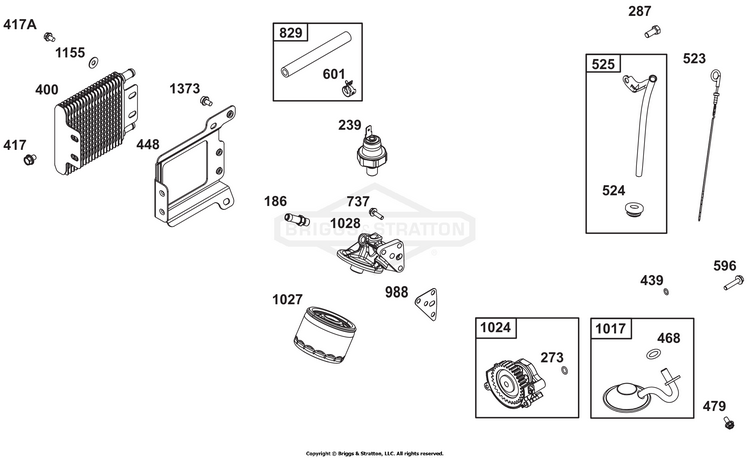

Lubrication Group

...
...
186
CONNECTOR, Hose BS-693184
...
239
SWITCH, Oil Pressure BS-690233
...
273
SEAL, O-Ring BS-690681
...
287
SCREW BS-692062
...
400
COOLER, Oil BS-846489
...
417
SCREW BS-843345
...
417A
SCREW BS-841233
...
439
O-RING, Oil Gallery BS-692154
...
448
BRACKET, Oil Cooler BS-841488
...
468
SEAL, O-Ring BS-690690
...
479
SCREW BS-807084
...
523
DIPSTICK BS-693175
...
524
SEAL, O-Ring BS-693172
...
525
TUBE, Dipstick BS-693174
...
596
SCREW BS-691492
...
601
CLAMP, Hose BS-841597
...
737
SCREW BS-690679
...
829
HOSE/CLAMP ASSEMBLY BS-841999
...
988
GASKET, Oil Adapter BS-692063
...
1017
SCREEN, Oil Pump BS-690900
...
1024
PUMP, Oil BS-843825
...
1027
FILTER, Oil BS-842921
...
1028
ADAPTER, Oil Filter BS-843898
...
1155
WASHER BS-806647
...
1373
SCREW BS-690679
