Briggs and Stratton 385447-0216-B5

Model: 385447-0216-B5

Back To Assemblies

Save Part Not Listed?
product name

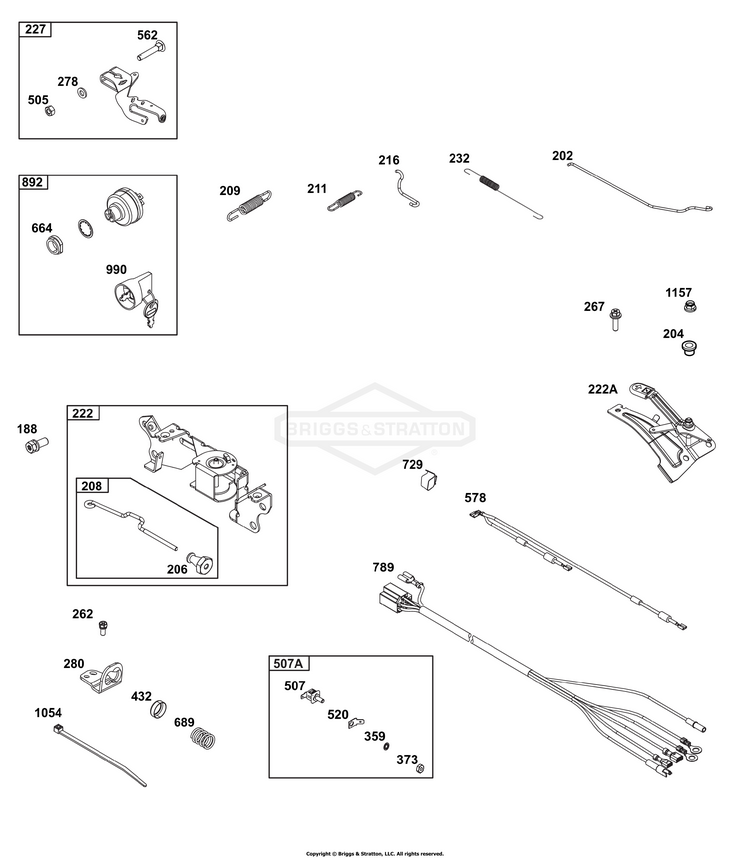

Controls Group

...
...
188
SCREW (Control Bracket) BS-692062
...
202
LINK, Mechanical Governor BS-691536
...
204
BUSHING, Lever BS-692884
...
206
NUT, Governor Adjusting BS-691244
...
208
ROD, Governor Control BS-808453
...
209
SPRING, Governor BS-690709
...
211
SPRING, Governed Idle BS-691504
...
216
LINK, Choke BS-691542
...
222
BRACKET, Control BS-808454
...
222A
CRANK, Bell BS-808753
...
227
LEVER, Governor Control BS-845484
...
232
SPRING/LINK, Governor BS-691538
...
262
SCREW BS-841552
...
267
SCREW BS-841552
...
278
WASHER (Governor Control Lever) BS-842122
...
280
BRACKET, Fixed Speed BS-691526
...
359
WASHER (Ground Terminal) BS-691077
...
373
NUT (Ground Terminal) BS-806447
...
432
CAP, Spring BS-691509
...
505
NUT (Governor Control Lever) BS-844752
...
507
INSULATOR BS-691972
...
507A
CONNECTOR, Terminal BS-848341
...
520
TERMINAL, Ground BS-691084
...
562
LEVER, Governor Control (Governor Control Lever) BS-844799
...
664
NUT BS-691087
...
689
SPRING, Friction BS-691272
...
729
CLIP, Wire BS-593826
...
789
HARNESS, Wiring BS-691996
...
892
SWITCH, Key BS-692318
...
990
SET, Key BS-691959
...
1054
TIE, Cable BS-280275
...
1157
NUT BS-806447
