Briggs and Stratton 385447-0216-B5

Model: 385447-0216-B5

Back To Assemblies

Save Part Not Listed?
product name

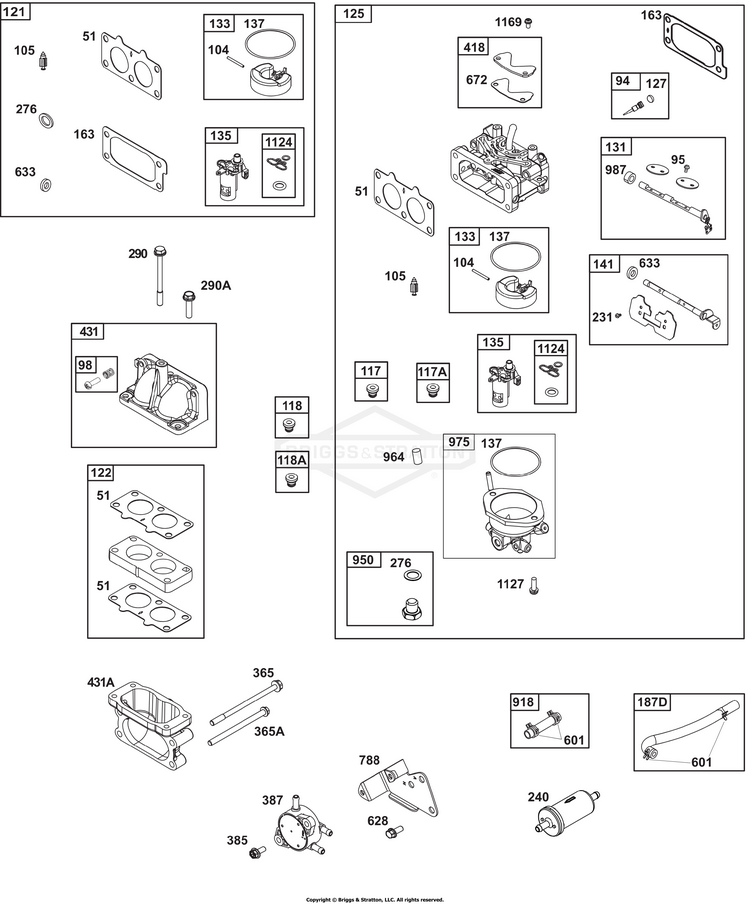

Carburetor and Fuel Supply Group

...
...
94
KIT, Idle Mixture BS-844593
...
95
SCREW (Throttle Valve) BS-690718
...
104
PIN, Float Hinge BS-844598
...
105
VALVE, Float Needle BS-698537
...
117
JET, Main (Standard) (Left Jet) BS-699733
...
117A
JET, Main (Standard) (Right Jet) BS-699457
...
118
JET, Main (High Altitude)(Left) BS-699820
...
118A
JET, Main (High Altitude)(Right) BS-843099
...
121
KIT, Carburetor Overhaul (Service Kits may include extra parts not specific to this engine.) BS-843103
...
122
SPACER, Carburetor BS-690870
...
125
CARBURETOR BS-844372
...
127
PLUG, Welch BS-844590
...
131
KIT, Throttle Shaft BS-845240
...
133
FLOAT, Carburetor BS-845291
...
135
TUBE, Fuel Transfer BS-842677
...
137
GASKET, Float Bowl BS-841651
...
141
KIT, Choke Shaft BS-843100
...
163
GASKET, Air Cleaner BS-692087
...
187D
LINE, Fuel BS-791744
...
231
SCREW (Choke Valve) BS-690718
...
240
FILTER, Fuel BS-845125
...
276
WASHER, Sealing BS-695410
...
290
SCREW BS-691537
...
290A
SCREW BS-691492
...
365
SCREW (Carburetor/Throttle Body) BS-847021
...
365A
SCREW (Carburetor/Throttle Body) BS-690866
...
385
SCREW (Fuel Pump) BS-807084
...
387
PUMP, Fuel BS-597338
...
418
PLATE, Carburetor Cover BS-844589
...
601
CLAMP, Hose BS-691038
...
628
SCREW (Fuel Pump Bracket) BS-806660
...
633
SEAL, Choke/Throttle Shaft BS-690722
...
672
GASKET, Carburetor Plate BS-843102
...
788
BRACKET, Fuel Pump BS-691559
...
918
GASKET, Breather Passage BS-791760
...
950
SCREW BS-694919
...
975
BOWL, Float BS-844591
...
987
SEAL, Throttle Shaft BS-691000
...
1124
SEAL, O-Ring (Fuel Transfer Tube) BS-842678
...
1127
SCREW (Float Bowl to Carburetor Body) BS-841621
...
1169
SCREW (Carburetor Cover Plate) BS-690990
