Briggs and Stratton 356777-0161-B5

Model: 356777-0161-B5

Back To Assemblies

Save Part Not Listed?
product name

Controls Group

...
...
188
SCREW (Control Bracket) BS-692062
...
209
SPRING, Governor BS-692070
...
211
SPRING, Governed Idle BS-692069
...
212
LINK, Throttle BS-847015
...
216
LINK, Choke BS-847949
...
222
BRACKET, Control BS-808454
...
227
LEVER, Governor Control BS-690236
...
232
SPRING, Governor link BS-848183
...
265
CLAMP, Casing BS-691024
...
267
SCREW (Casing Clamp) BS-841552
...
278
WASHER (Governor Control Lever) BS-842122
...
291
WIRE ASSEMBLY BS-796913
...
359
WASHER (Ground Terminal) BS-691077
...
373
NUT, Hex #8-32 (Ground Terminal) BS-703460
...
505
NUT (Governor Control Lever) BS-844752
...
507
INSULATOR BS-691972
...
520
TERMINAL, Ground BS-691084
...
562
LEVER, Governor Control (Governor Control Lever) BS-844799
...
578A
WIRE, Stop BS-807063
...
633
SEAL, Choke/Throttle Shaft BS-691321
...
729
CLIP, Wire BS-593826
...
789
HARNESS, WIRING BS-84012952
...
789A
HARNESS, Wiring BS-847809
...
789B
HARNESS, Wiring BS-847810
...
1054
TIE, Cable BS-280275
...
1084
CONNECTOR, Terminal BS-848341
...
1193
SCREW, Hex Head, Trilobular, #6-32 x 3/8 (Thermostat) BS-192730GS
...
1436
MOTOR, Stepper BS-847946
...
1458
SCREW (Stepper Motor) BS-699891
...
1461
UNIT, Engine Control, (ECU) (Pre-Programmed) BS-847950
...
1496
BRACKET, ECU/ECM BS-84005064
...
1517
SCREW (ECU Bracket) BS-792629
...
1574
SCREW (Ground Wire) BS-841233

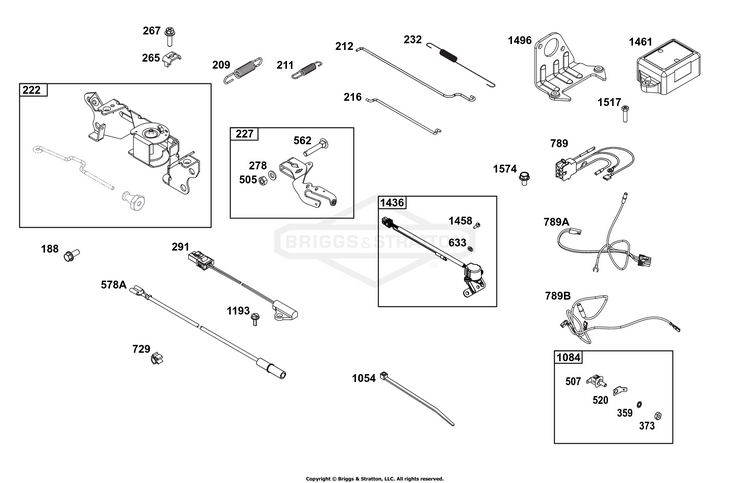

Schematic Image Zoomed
