Briggs and Stratton 356777-0048-B5

Model: 356777-0048-B5

Back To Assemblies

Save Part Not Listed?
product name

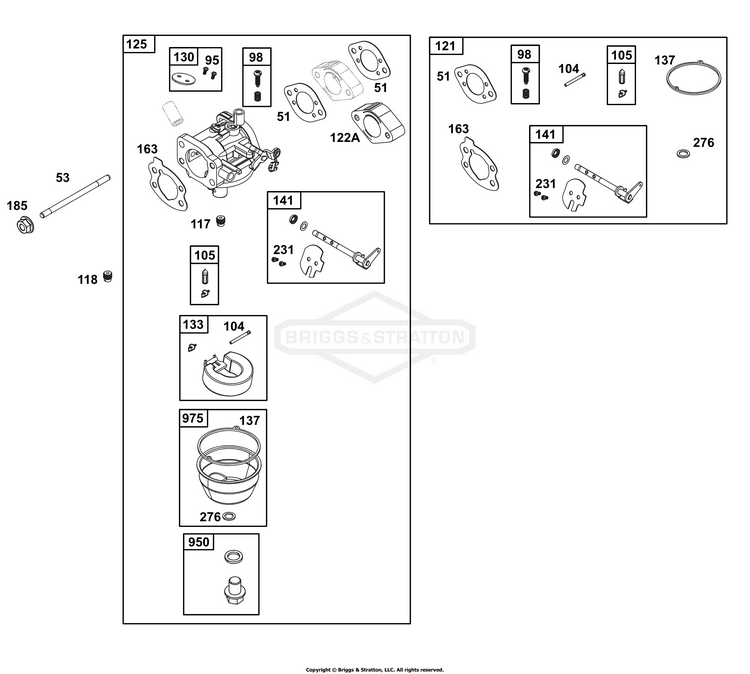

Carburetor Group

...
...
53
STUD (Carburetor) BS-690746
...
95
SCREW (Throttle Valve) BS-846644
...
98
KIT, Idle Speed BS-846649
...
104
PIN, Float Hinge BS-846646
...
105
VALVE, Float Needle BS-846643
...
117
JET, Main (Standard) BS-846647
...
118
JET, Main (High Altitude) BS-846590
...
121
KIT, Carburetor Overhaul (Service Kits may include extra parts not specific to this engine.) BS-847318
...
122A
SPACER, Carburetor BS-847047
...
125
CARBURETOR BS-847049
...
130
VALVE, Throttle BS-846638
...
133
FLOAT, Carburetor BS-846645
...
137
GASKET, Float Bowl BS-846642
...
141
KIT, Choke Shaft BS-846637
...
163
GASKET, Air Cleaner BS-844931
...
185
NUT (Rewind Guard) BS-690939
...
231
SCREW (Choke Valve) BS-846644
...
276
WASHER, Sealing BS-846640
...
950
SCREW BS-846648
...
975
BOWL, Float BS-846641
