Briggs and Stratton 356446-0599-F1

Model: 356446-0599-F1

Back To Assemblies

Save Part Not Listed?
product name

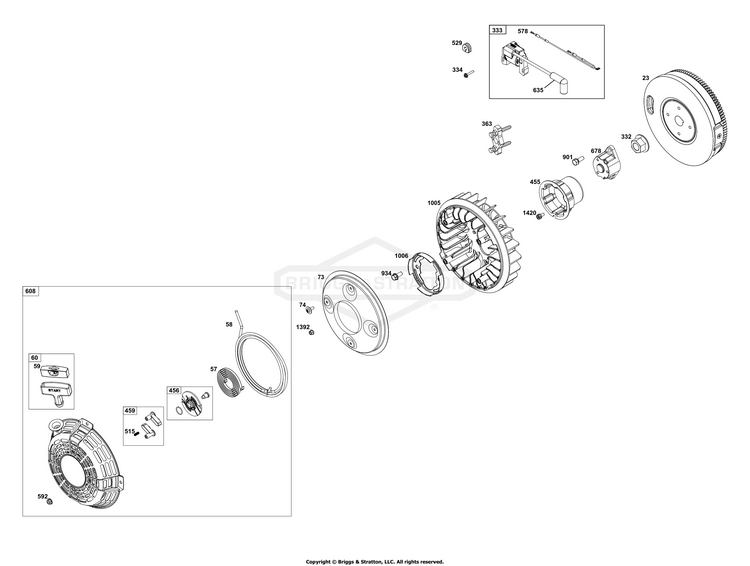

Flywheel, Ignition, and Starter Group

...
...
23
FLYWHEEL (16 Amp) BS-842259
...
57
SPRING, Rewind Starter BS-692086
...
58
ROPE, Starter BS-66574
...
59
INSERT, Grip BS-805957
...
60
GRIP, Starter Rope BS-808167
...
73
SCREEN, Rotating BS-841662
...
74
SCREW (Rotating Screen) BS-84007750
...
332
NUT (Flywheel) BS-690887
...
333
ARMATURE, MAGNETO BS-84013449
...
334
SCREW (Magneto Armature) (M6x10mm) BS-692066
...
363
PULLER, Flywheel BS-19203
...
455
CUP, Flywheel BS-841794
...
456
PLATE, Pawl Friction (NLA - Please see Ref 608 to Service) BS-845219
...
459
PAWL, Ratchet BS-845218
...
515
SPRING, Pawl BS-691528
...
529
GROMMET BS-690744
...
592
NUT (Rewind Starter) BS-690939
...
608
STARTER, Rewind BS-841729
...
678
SPACER BS-841730
...
901
SCREW (Rewind Spacer) (M8x20mm) BS-846234
...
934
SCREW (Fan Retainer) BS-692062
...
1005
FAN, Flywheel BS-841439
...
1006
RETAINER, Fan BS-690452
...
1392
NUT BS-690939
...
1420
SCREW (Flywheel Cup to Rewind Spacer) BS-841735
