Briggs and Stratton 356442-0667-F1

Model: 356442-0667-F1

Back To Assemblies

Save Part Not Listed?
product name

Cylinder Group

...
...
1
CYLINDER ASSEMBLY BS-84013584
...
2
KIT, BUSHING/SEAL (Magneto Side) BS-84013005
...
3
SEAL, Oil (Magneto Side) BS-845659
...
8
BREATHER ASSEMBLY BS-808984
...
9
GASKET, Breather BS-844986
...
9
GASKET, Breather BS-844986
...
10
SCREW (Breather Assembly) BS-690751
...
15A
PLUG, Oil Drain (3/8"-18 NPTF - Internal 3/8" Sq) BS-690946
...
215
GUIDE, Air BS-841183
...
215A
GUIDE, Air BS-841182
...
317
GUARD, Flywheel BS-841309
...
358
GASKET SET, ENGINE (Service Kits may include extra parts not specific to this engine.) BS-84010902
...
405
SCREW (Back Plate) BS-807163
...
447
SCREW (Air Guide Cover) BS-841233
...
524
SEAL, O-Ring (Part information located in Crankcase Cover/Sump and Lubrication Group.) BS-693172
...
572
BAFFLE, Breather BS-690686
...
573
PLATE, Back BS-841310
...
718
PIN, Locating BS-806469
...
732
SCREW BS-690688
...
865
COVER, Air Guide BS-843768
...
1334
SCREW (Air Guide) BS-841233

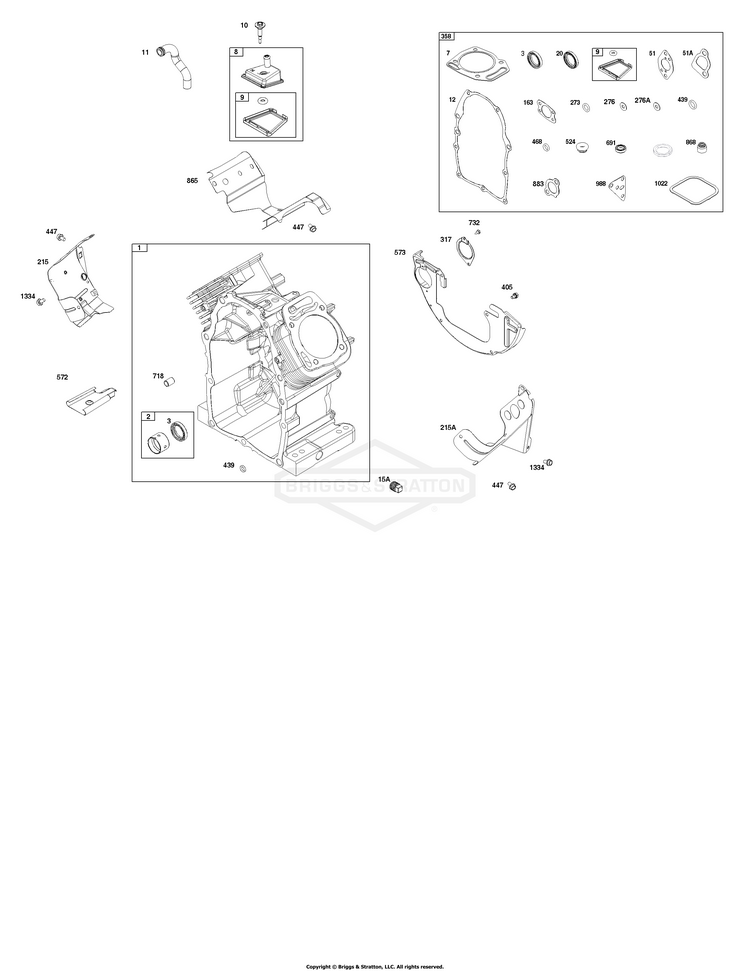

Schematic Image Zoomed
