Briggs and Stratton 33S877-0041-B5

Model: 33S877-0041-B5

Back To Assemblies

Save Part Not Listed?
product name

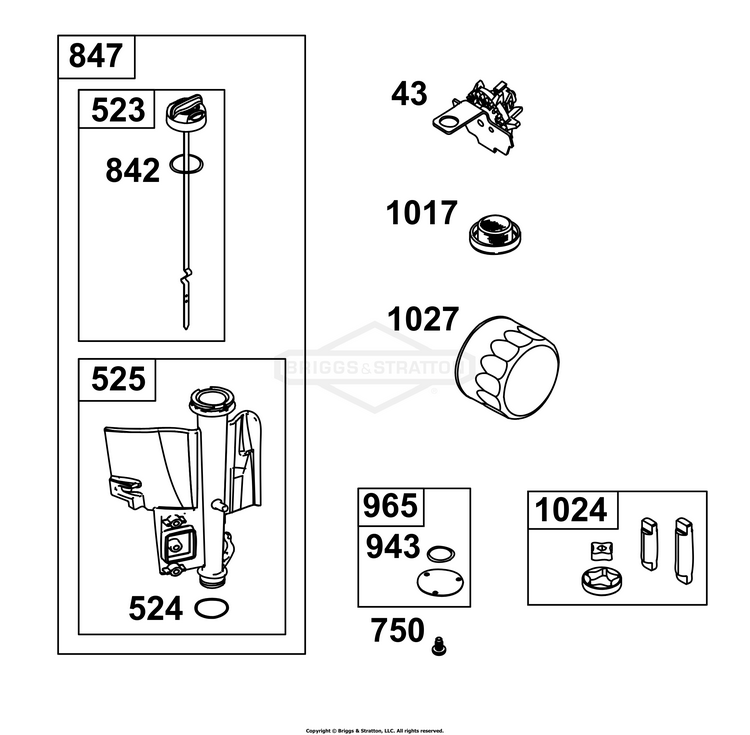

Lubrication Group

...
...
43
SLINGER, Governor/Oil BS-691968
...
523
DIPSTICK/TUBE ASSEMBLY BS-790443
...
524
SEAL, O-Ring (Dipstick Tube) BS-691032
...
525
TUBE, Dipstick BS-697085
...
750
SCREW (Oil Pump Cover) BS-790832
...
842
SEAL, O-Ring (Dipstick Cap) BS-691031
...
847
DIPSTICK/TUBE ASSEMBLY BS-790442
...
943
SEAL, O-Ring (Oil Pump Cover) BS-690589
...
965
COVER, Oil Pump BS-499613
...
1017
SCREEN, Oil Pump BS-796981
...
1024
PUMP-OIL BS-794644
...
1027
FILTER, Oil BS-492932S
