Briggs and Stratton 33S877-0036-G1

Model: 33S877-0036-G1

Back To Assemblies

Save Part Not Listed?
product name

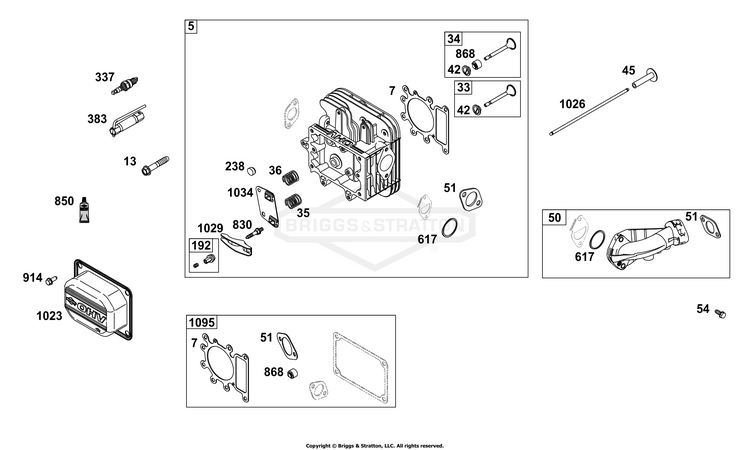

Cylinder Head Group

...
...
5
HEAD, Cylinder BS-591750
...
7
GASKET, Cylinder Head BS-794114
...
13
SCREW (Cylinder Head) BS-84001963
...
33
VALVE, EXHAUST BS-84013575
...
34
VALVE, INTAKE BS-84013576
...
35
SPRING, Valve (Intake) BS-691279
...
36
SPRING, Valve (Exhaust) BS-691279
...
42
KEEPER, Valve BS-84012308
...
45
TAPPET, Valve BS-690564
...
50
MANIFOLD-INTAKE BS-592842
...
51
GASKET-INTAKE BS-692137
...
54
SCREW (Intake Manifold) BS-691148
...
192
ADJUSTER, Rocker Arm BS-691986
...
238
CAP, Valve BS-691843
...
337
PLUG, Spark BS-792015
...
383
WRENCH, Spark Plug BS-19576S
...
617
SEAL, O-Ring (Intake Manifold) BS-692138
...
830
STUD, Rocker Arm BS-691095
...
868
SEAL, Valve BS-690968
...
914
SCREW (Rocker Cover) BS-691108
...
1023
COVER-ROCKER BS-797421
...
1026
ROD, Push (Intake) BS-692003
...
1026
ROD, Push (Exhaust) BS-692011
...
1029
ARM, Rocker BS-691751
...
1034
GUIDE, Push Rod BS-690822
...
1095
GASKET SET, Valve (Service Kits can include parts not for this engine.) BS-794152
