Briggs and Stratton 326431-3637-08

Model: 326431-3637-08

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

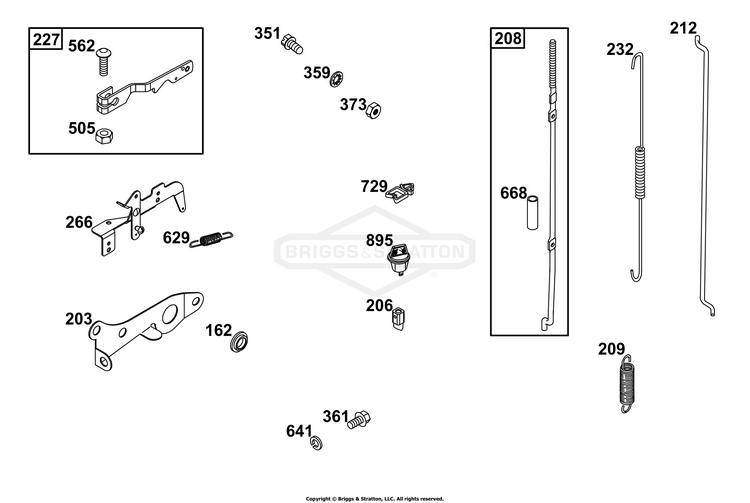

Controls Group

...
...
162
BUSHING BS-690267
...
203
CRANK, Bell BS-690263
...
206
NUT, Governor Adjusting BS-691584
...
208
ROD, Governor Control BS-593696
...
209
SPRING, Governor BS-691596
...
212
LINK, Throttle BS-691791
...
227
LEVER, Governor Control BS-690607
...
232
SPRING/LINK, Governor BS-690545
...
266
CONTROL, Throttle BS-494554
...
351
SCREW (Ground Terminal) BS-690292
...
359
WASHER (Ground Terminal) BS-691077
...
361
SCREW (Starting Switch) BS-691681
...
373
NUT (Ground Terminal) BS-691612
...
505
NUT (Governor Control Lever) BS-691251
...
562
BOLT (Governor Control Lever) BS-691119
...
629
SPRING, Throttle Return BS-690538
...
641
WASHER, 5/16" LOCK (Starting Switch) BS-5025170SM
...
668
SPACER BS-690313
...
729
CLIP, Wire BS-690588
...
895
SWITCH, Rotary BS-692309
