Briggs and Stratton 31S977-0020-B5

Model: 31S977-0020-B5

Back To Assemblies

Save Part Not Listed?
product name

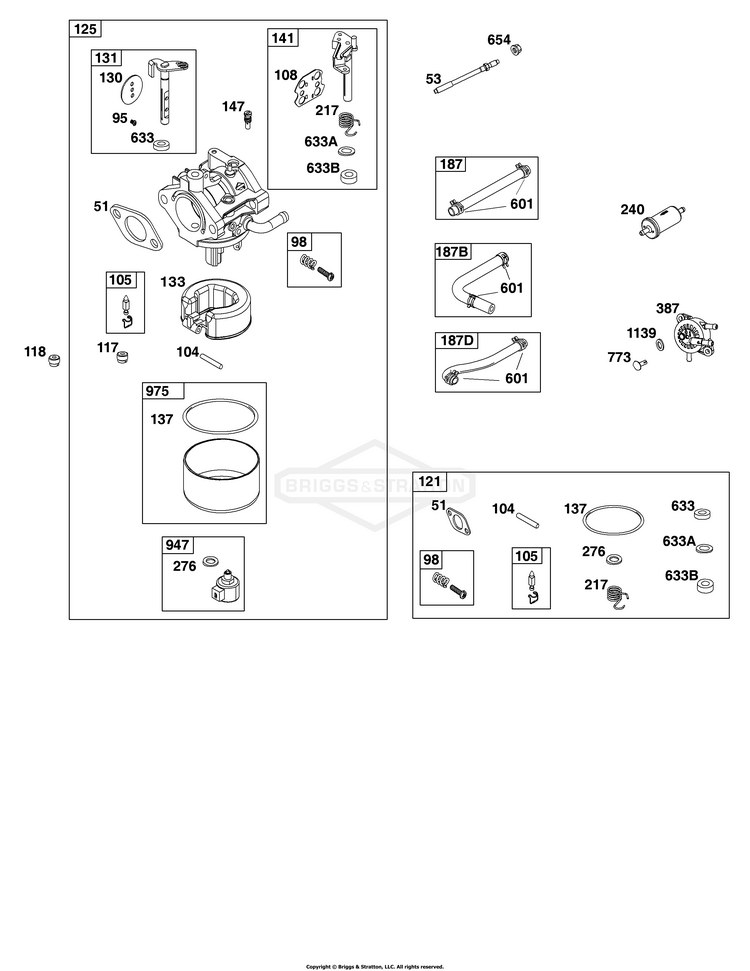

Carburetor and Fuel Supply Group

...
...
51
GASKET-INTAKE (Part information located in Cylinder Head Group.) BS-692137
...
53
STUD (Carburetor) BS-591260
...
95
SCREW (Throttle Valve) BS-593897
...
98
KIT, Idle Speed BS-847139
...
98
KIT, Idle Speed BS-847139
...
104
PIN, Float Hinge BS-594860
...
105
VALVE, Float Needle BS-594868
...
105
VALVE, Float Needle BS-594868
...
108
VALVE, Choke BS-594863
...
117
JET, Main (Standard) BS-595071
...
118
JET, Main (High Altitude) BS-595069
...
121
KIT, Carburetor Overhaul (Service Kits may include extra parts not specific to this engine.) BS-594886
...
125
CARBURETOR BS-594605
...
130
VALVE, Throttle BS-594858
...
131
KIT, Throttle Shaft BS-594856
...
133
FLOAT, Carburetor BS-594859
...
137
GASKET, Float Bowl BS-594861
...
141
KIT, Choke Shaft BS-594862
...
147
JET, Pilot BS-594872
...
187
LINE, Fuel BS-791766
...
187B
LINE, Fuel BS-597201
...
187D
LINE, Fuel BS-791744
...
217
SPRING, Choke Return BS-594864
...
240
FILTER, Fuel BS-845125
...
276
WASHER, Sealing BS-846640
...
387
PUMP, Fuel BS-597338
...
601
CLAMP, Hose BS-791850
...
633
SEAL, Choke/Throttle Shaft BS-797629
...
633A
SEAL, Choke/Throttle Shaft BS-594865
...
633B
SEAL, Choke/Throttle Shaft BS-594866
...
654
NUT (Carburetor) BS-690958
...
773
RETAINER BS-796448
...
947
SOLENOID, Fuel BS-846639
...
975
BOWL, Float BS-594867
...
1139
WASHER (Fuel Pump Bracket) BS-796449
