Briggs and Stratton 31S977-0020-B5

Model: 31S977-0020-B5

Back To Assemblies

Save Part Not Listed?
product name

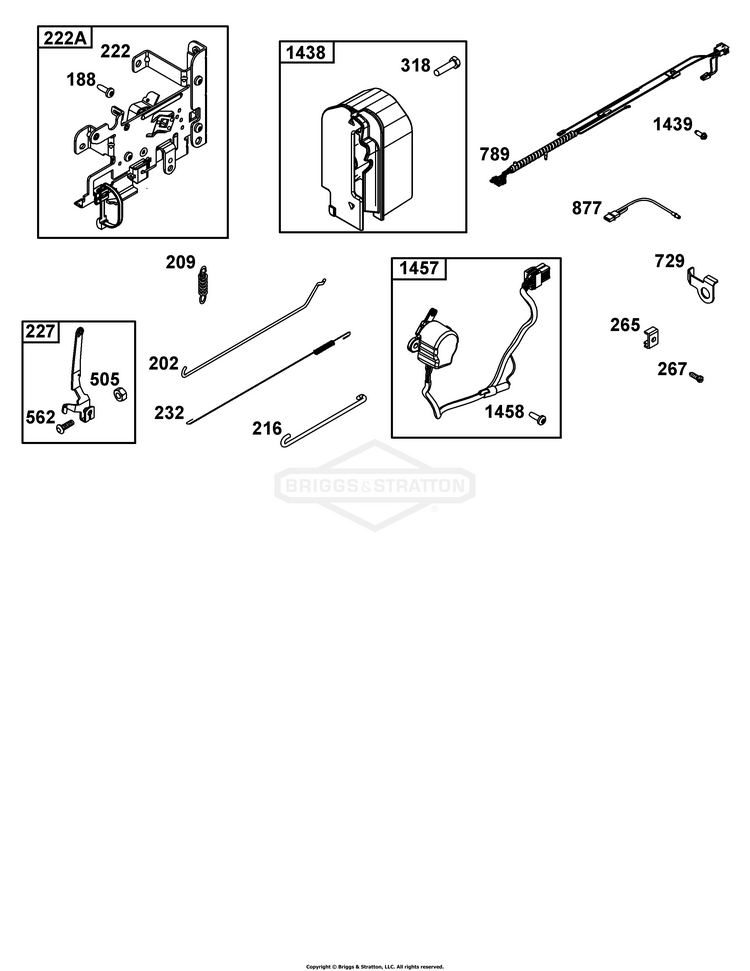

Controls Group

...
...
188
SCREW (Control Bracket) BS-699891
...
202
LINK, Mechanical Governor BS-691841
...
209
SPRING, Governor BS-796260
...
216
LINK, Choke BS-597205
...
222
BRACKET, Control BS-597325
...
222A
BRACKET, Control BS-597209
...
227
LEVER, Governor Control BS-691374
...
232
SPRING, Governor Link BS-691842
...
265
CLAMP, Casing BS-691024
...
267
SCREW (Casing Clamp) BS-794904
...
318
SCREW (Mounting Bracket) BS-792629
...
505
NUT (Governor Control Lever) BS-691251
...
562
BOLT (Governor Control Lever) BS-691119
...
729
CLIP, Wire BS-691224
...
789
HARNESS, Wiring BS-597204
...
877
WIRE/CONNECTOR, Alternator BS-790544
...
1438
MODULE, Electronic Choke BS-597203
...
1439
SCREW (Mounting Bracket) BS-594384
...
1457
MOTOR, Stepper BS-597208
...
1458
SCREW (Stepper Motor) BS-699891
Schematic Image Zoomed
