Briggs and Stratton 31S877-0004-B5

Model: 31S877-0004-B5

Back To Assemblies

Save Part Not Listed?
product name

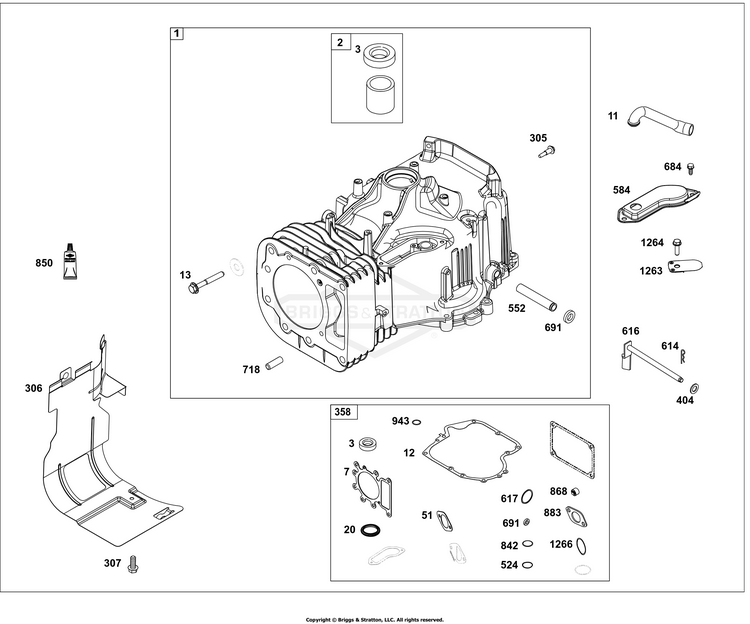

Cylinder Group

...
...
1
CYLINDER ASSEMBLY BS-796010
...
2
KIT, Bushing/Seal (Magneto Side) BS-797673
...
3
SEAL, Oil (Magneto Side) BS-391086S
...
11
TUBE, Breather BS-794683
...
306
SHIELD, Cylinder BS-794953
...
307
SCREW (Cylinder Shield) BS-691693
...
358
GASKET SET, Engine (Service Kits may include extra parts not specific to this engine.) BS-796181
...
404
WASHER (Governor Crank) BS-691691
...
552
BUSHING, Governor Crank BS-697144
...
584
COVER, Breather Passage BS-794682
...
614
PIN, Cotter BS-691620
...
616
CRANK, Governor BS-692012
...
684
SCREW (Breather Passage Cover) BS-697157
...
691
SEAL, Governor Shaft BS-692407
...
718
PIN, Locating BS-690959
...
850
SEALANT, Liquid BS-100106
...
1263
REED, Breather BS-697124
...
1264
SCREW (Breather Reed) BS-697104
