product name

Briggs and Stratton 31R977-0108-G1

Model: 31R977-0108-G1

Back To Assemblies

Save Part Not Listed?
product name

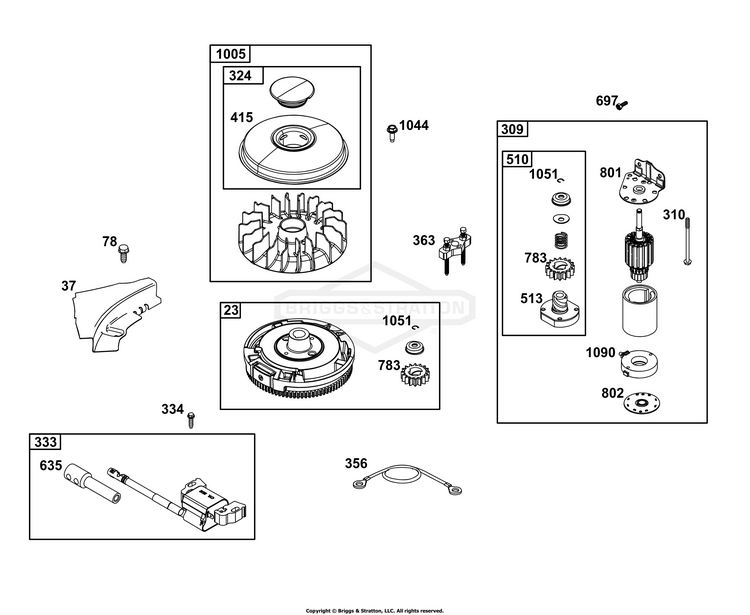

Flywheel/Ignition/Starter Group

...
...
23
FLYWHEEL BS-591758
...
37
GUARD, Flywheel BS-697352
...
78
SCREW (Flywheel Guard) BS-691693
...
309
MOTOR, Starter BS-84007306
...
310
SCREW (Starter Motor) BS-690323
...
324
SCREEN/CUP ASSEMBLY BS-593933
...
333
ARMATURE, Magneto BS-595304
...
334
SCREW (Magneto Armature) BS-691061
...
356
WIRE, Stop BS-697089
...
363
PULLER, Flywheel BS-19203
...
415
COVER, Flywheel BS-794129
...
510
MOTOR, Starter BS-593934
...
513
CLUTCH, Drive BS-692024
...
697
SCREW (Drive Cap) BS-791680
...
783
GEAR, Pinion BS-593935
...
801
CAP, Drive BS-691283
...
802
CAP, End BS-691286
...
1005
FAN-FLYWHEEL BS-796201
...
1044
SCREW (Flywheel) BS-698139
...
1051
RING, Retaining BS-691265
...
1090
RETAINER, Brush BS-691293
Schematic Image Zoomed
