Briggs and Stratton 31R577-0038-B5

Model: 31R577-0038-B5

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

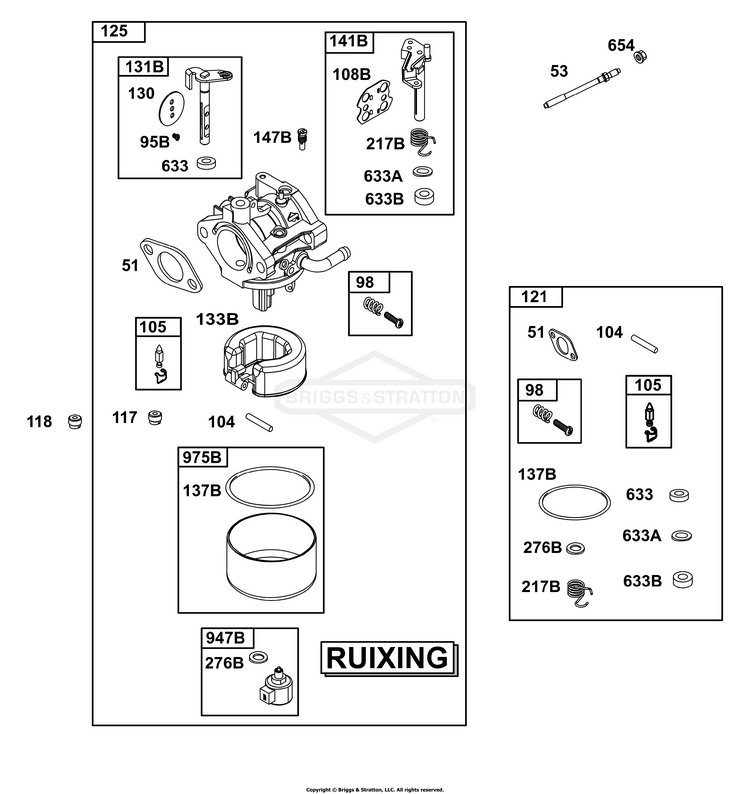

Carburetor Group

...
...
53
STUD (Carburetor) BS-591260
...
95B
SCREW (Throttle Valve) BS-593897
...
98
KIT, Idle Speed BS-847139
...
104
PIN, Float Hinge BS-594860
...
105
VALVE, Float Needle BS-594868
...
108B
VALVE, Choke BS-594863
...
117
JET, Main (Standard) BS-597458
...
118
JET, Main (High Altitude) BS-595070
...
121
KIT, Carburetor Overhaul (Service Kits can include parts not for this engine.) BS-594886
...
125
CARBURETOR BS-594593
...
130
VALVE, Throttle BS-594857
...
131B
KIT, Throttle Shaft BS-594855
...
133B
FLOAT, Carburetor BS-594859
...
137B
GASKET, Float Bowl BS-594861
...
141B
KIT, Choke Shaft BS-594862
...
147B
JET, Pilot BS-594870
...
217B
SPRING, Choke Return BS-594864
...
276B
WASHER, Sealing BS-846640
...
633
SEAL, Choke/Throttle Shaft BS-797629
...
633A
SEAL, Choke/Throttle Shaft BS-594865
...
633B
SEAL, Choke/Throttle Shaft BS-594866
...
654
NUT (Carburetor) BS-690958
...
947B
SOLENOID, Fuel BS-846639
...
975B
BOWL, Float BS-594867
