Briggs and Stratton 31R577-0014-B5

Model: 31R577-0014-B5

Back To Assemblies

Save Part Not Listed?
product name

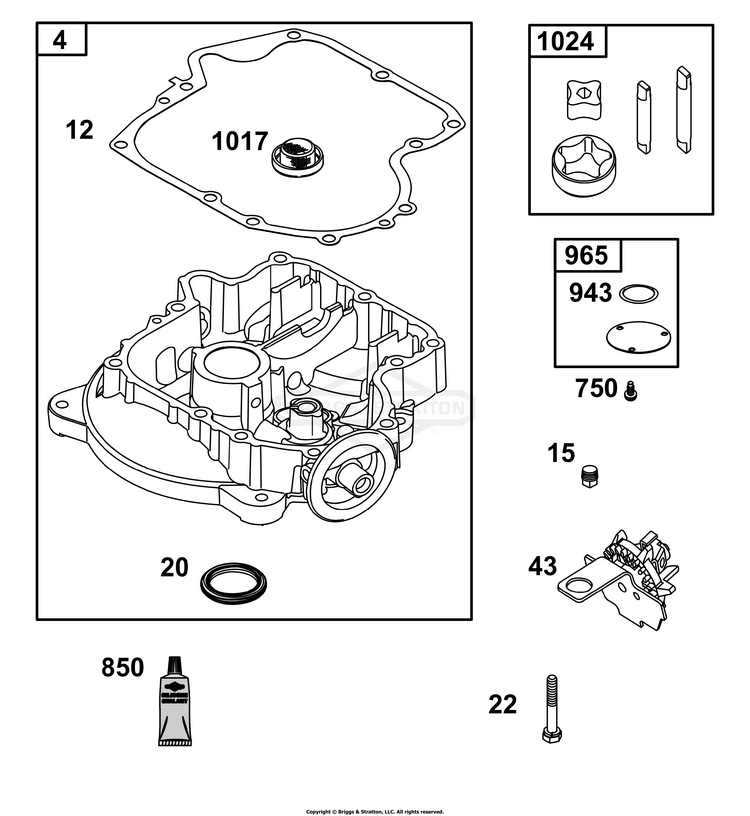

Crankcase Cover/Sump Group

...
...
4
SUMP, Engine BS-592849
...
12
GASKET, Crankcase BS-697110
...
15
PLUG, Oil Drain BS-690946
...
20
SEAL, Oil (PTO Side) BS-795387
...
22
SCREW (Crankcase Cover/Sump) BS-692125
...
750
SCREW (Oil Pump Cover) BS-790832
...
850
SEALANT, Liquid BS-100106
...
943
SEAL, O-Ring (Oil Pump Cover) BS-690589
...
965
COVER, Oil Pump BS-499613
...
1017
SCREEN, Oil Pump (Part information located in Lubrication Group.) BS-796981
