Briggs and Stratton 31R507-0055-G1

Model: 31R507-0055-G1

Back To Assemblies

Save Part Not Listed?
product name

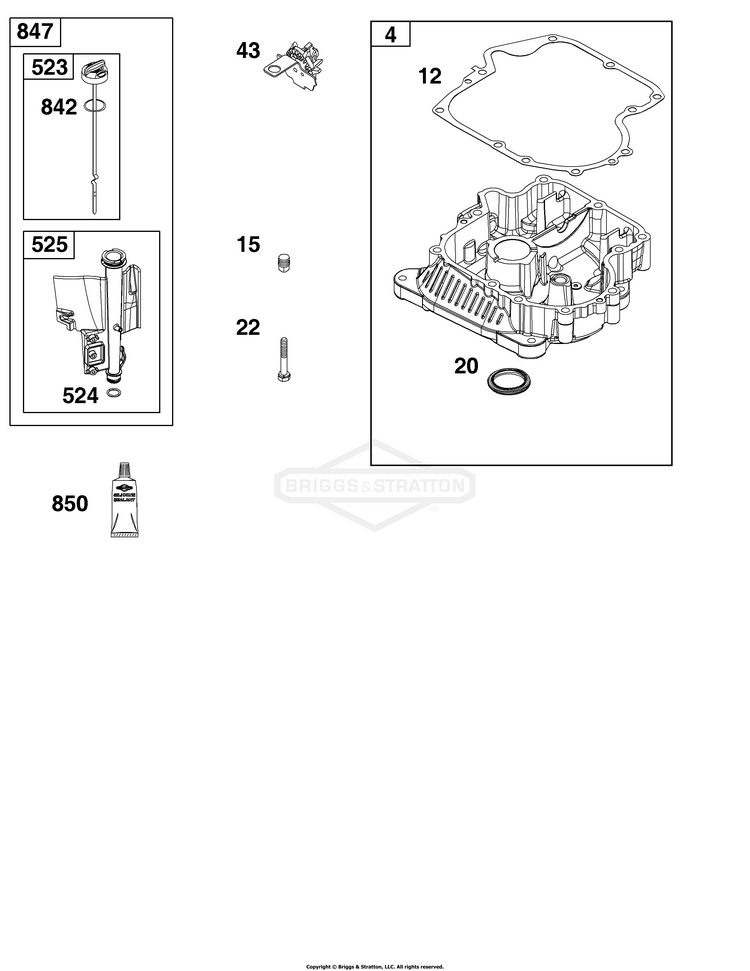

Crankcase Cover/Sump and Lubrication Group

...
...
4
SUMP, Engine BS-697106
...
12
GASKET, Crankcase BS-697110
...
15
PLUG, Oil Drain BS-690946
...
20
SEAL, Oil (PTO Side) BS-795387
...
22
SCREW (Crankcase Cover/Sump) BS-692125
...
43
SLINGER, Governor/Oil BS-691968
...
523
DIPSTICK BS-699908
...
524
SEAL, O-Ring (Dipstick Tube) BS-691032
...
525
TUBE, Dipstick BS-697184
...
842
SEAL, O-Ring (Dipstick Cap) BS-691031
...
847
DIPSTICK/TUBE ASSEMBLY BS-790442
...
850
SEALANT, Liquid BS-100106
