Briggs and Stratton 305447-0643-G1

Model: 305447-0643-G1

Back To Assemblies

Save Part Not Listed?
product name

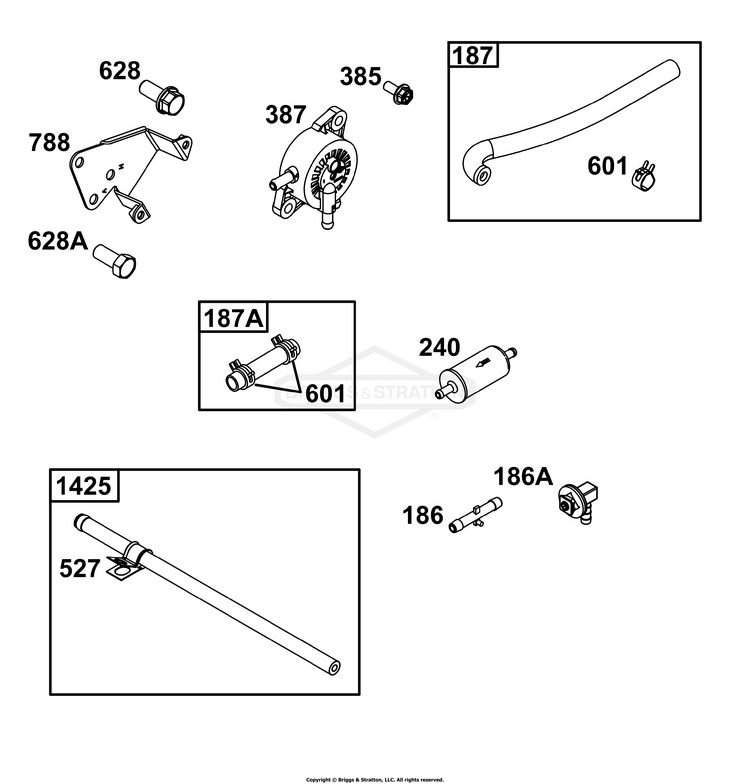

Fuel Supply Group

...
...
186
CONNECTOR, Hose BS-845121
...
186A
CONNECTOR, Hose BS-845141
...
187
LINE, Fuel BS-791766
...
187A
GASKET, Breather Passage BS-791760
...
240
FILTER, Fuel BS-845125
...
385
SCREW (Fuel Pump) BS-807084
...
387
PUMP, Fuel BS-597338
...
527
CLAMP, Hose BS-845268
...
601
CLAMP, Hose BS-691038
...
628
SCREW (Fuel Pump Bracket) BS-692062
...
628A
SCREW (Fuel Pump Bracket) BS-806660
...
788
BRACKET, Fuel Pump BS-691559
...
1425
HOSE, Purge Line BS-844712
Schematic Image Zoomed
