Briggs and Stratton 305447-0634-H5

Model: 305447-0634-H5

Back To Assemblies

Save Part Not Listed?
product name

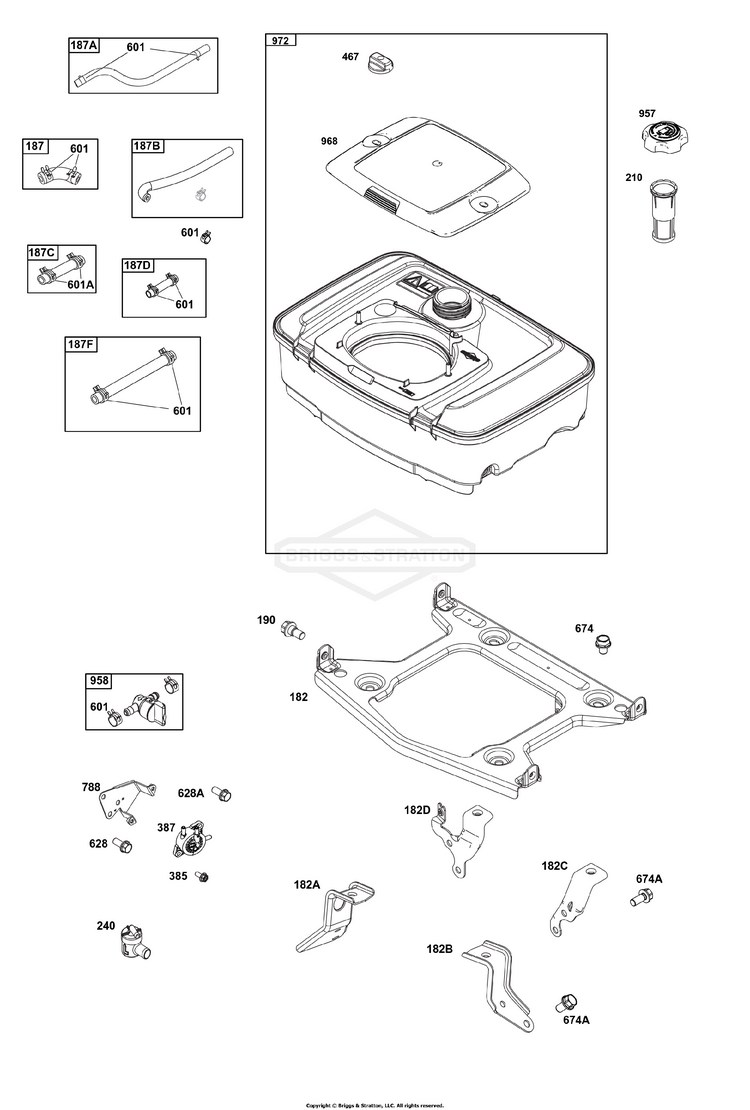

Fuel Supply Group

...
...
182
BRACKET, Fuel Tank BS-846591
...
182A
BRACKET, Fuel Tank BS-841600
...
182B
BRACKET, Fuel Tank BS-691524
...
182C
BRACKET, Fuel Tank BS-691525
...
182D
BRACKET, Fuel Tank BS-691520
...
187
LINE, Fuel (Formed Hose) BS-846567
...
187A
LINE, Fuel (Formed)(Cut To Required Length) BS-846318
...
187B
LINE, Fuel BS-84005182
...
187C
LINE, Fuel (Straight) BS-692106
...
187D
LINE, Fuel BS-791766
...
187F
GASKET, Breather Passage BS-791760
...
190
SCREW (Fuel Tank) (1/4-20 x 0.62 ) BS-692199
...
210
STRAINER, Fuel BS-691370
...
240
FILTER, Fuel BS-844545
...
385
SCREW (Fuel Pump) (M6x14mm) BS-807084
...
387
PUMP, Fuel BS-597338
...
467
KNOB, Air Cleaner Cover BS-844618
...
601
CLAMP, Hose BS-691038
...
601A
CLAMP, Hose BS-691522
...
628
SCREW (Fuel Pump Bracket) (M8x18mm) BS-692062
...
628A
SCREW BS-806660
...
674
SCREW (Fuel Tank Bracket) (M8x10mm) BS-845964
...
674A
SCREW BS-692062
...
788
BRACKET, Fuel Pump BS-691559
...
957
CAP, Fuel Tank BS-795027
...
958
VALVE, Fuel Shut Off BS-698183
...
972
TANK, Fuel BS-844558
